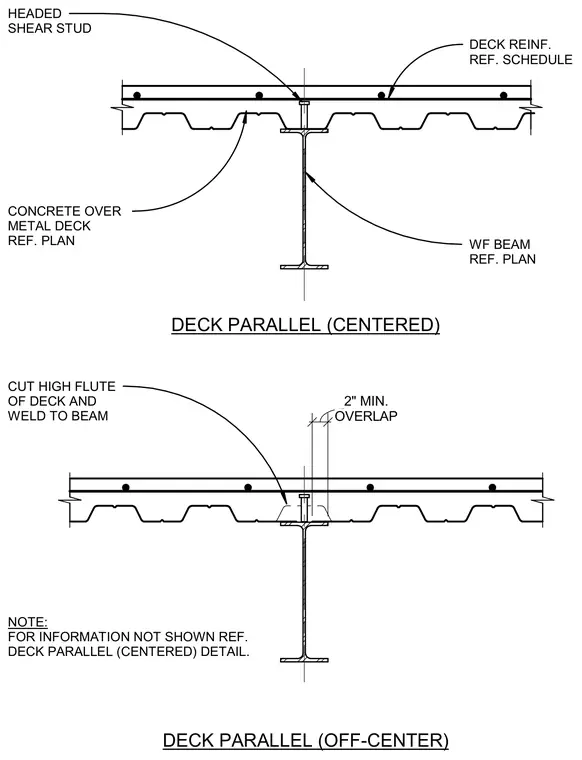

A concrete slab over metal deck runs parallel to a wide-flange steel beam. Headed shear studs are welded through the metal deck into the top flange of the wide-flange beam to provide composite action. The metal deck reinforcement is sized per the structural schedule, and the concrete thickness is sized per plan. In the off-center configuration, the high flute of the deck is cut and welded to the beam with a minimum two-inch overlap. Additional information not shown on the off-center detail is referenced back to the centered deck parallel detail.
CUT HIGH FLUTE OF DECK AND WELD TO BEAM OVERLAP 2" MIN. DECK REINF. REF. SCHEDULE WF BEAM REF. PLAN CONCRETE OVER METAL DECK REF. PLAN HEADED SHEAR STUD DECK PARALLEL (CENTERED) DECK PARALLEL (OFF-CENTER) NOTE: FOR INFORMATION NOT SHOWN REF. DECK PARALLEL (CENTERED) DETAIL.
