Structural · S-ER42R

Typical Post-Tensioned Beam-Column Joint at Aligned Beam

Materials

Concrete

Elements

Columns Beams Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

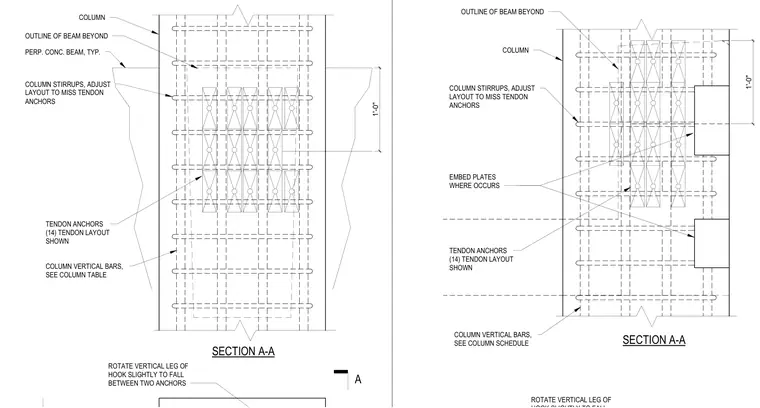

A typical post-tensioned concrete beam-column joint with intersecting perpendicular beams contains fourteen tendon anchors arranged in a grid pattern within the joint region, requiring column stirrups to be adjusted in layout to clear the anchors. Column vertical bars are provided per the column schedule, and embed plates are placed where indicated. The vertical leg of the hook is rotated slightly to fall between two anchors, and the outline of the beam extends beyond the column.
