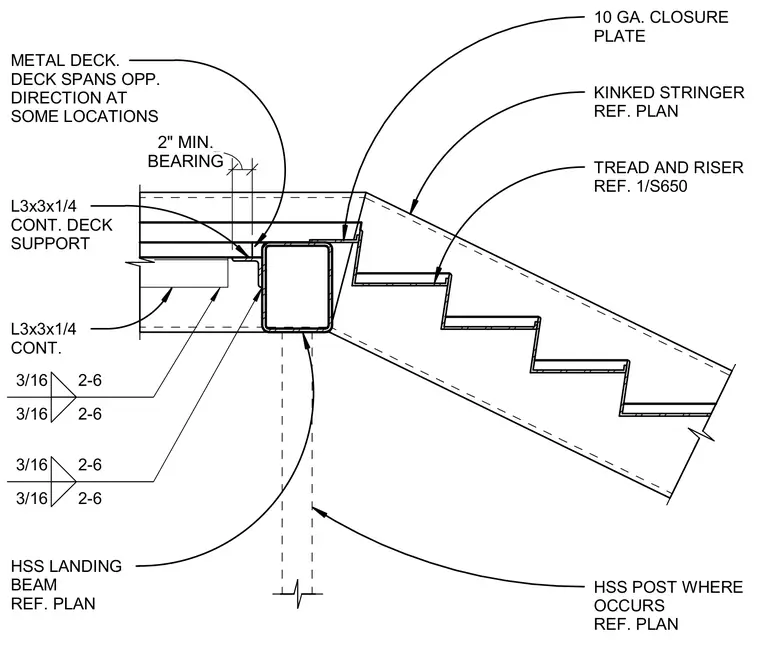

A kinked stair stringer frames into an HSS landing beam supported by an optional HSS post below. Continuous L3x3x1/4 angles provide deck support and ensure a minimum 2-inch metal deck bearing with a 10 gauge closure plate. Fillet welds of 3/16-inch size spaced at 2'-6" intervals secure the structural steel components.
10 GA. CLOSURE PLATE BEARING 2" MIN. METAL DECK. DECK SPANS OPP. DIRECTION AT SOME LOCATIONS L3x3x1/4 CONT. 3/16 2-6 3/16 2-6 L3x3x1/4 CONT. DECK SUPPORT 3/16 2-6 3/16 2-6 HSS LANDING BEAM REF. PLAN KINKED STRINGER REF. PLAN TREAD AND RISER REF. 1/S650 HSS POST WHERE OCCURS REF. PLAN
