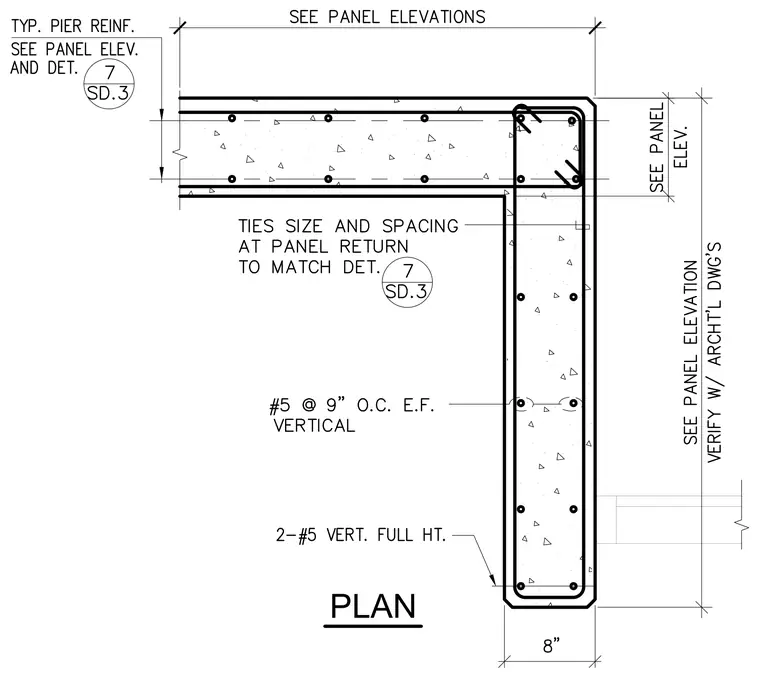

A concrete wall corner plan detail displays an eight inch thick concrete wall reinforced with number five vertical bars at nine inches on center each face and two number five vertical bars full height. A pier at the corner includes ties sized and spaced to match detail seven on sheet SD.3. Typical pier reinforcement is referenced to panel elevations and detail seven on sheet SD.3. Dimensions reference panel elevations and architectural drawings.
