Structural · S-EQZPS

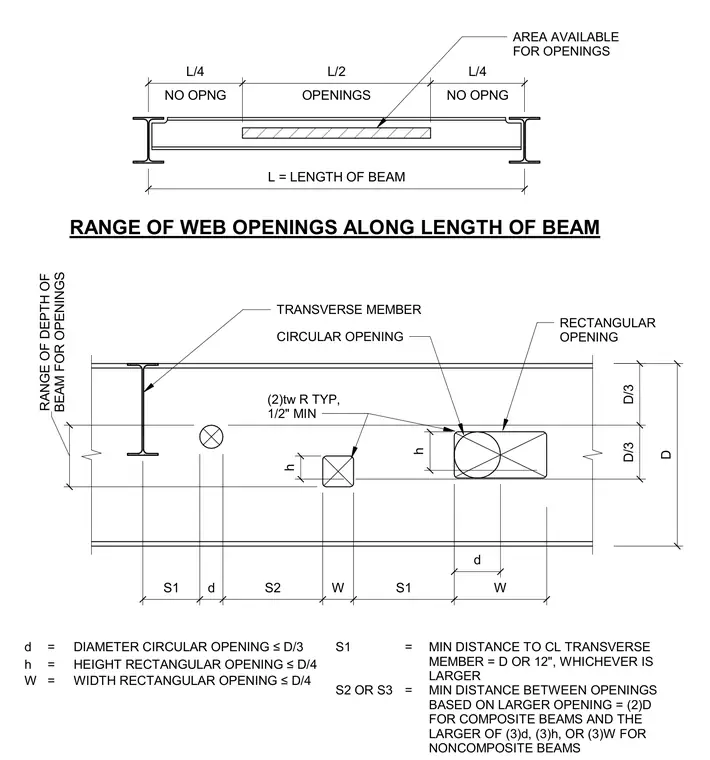

Range of Web Openings Along Length of Beam

Materials

Composite

Elements

Beams Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

This structural detail defines the allowable limits and spacing requirements for web penetrations along the length of a steel beam. Openings are restricted to the middle half of the beam length, leaving the outer quarter spans free of penetrations. Circular openings and rectangular openings are limited to a maximum depth of one-third of the beam depth. Minimum edge distances, transverse member clearances, and clear spacings between adjacent openings are specified for both composite and noncomposite beams.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
