Chiller Tower Concrete Tilt-Up Wall Panel Connection to Footing

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Arches Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

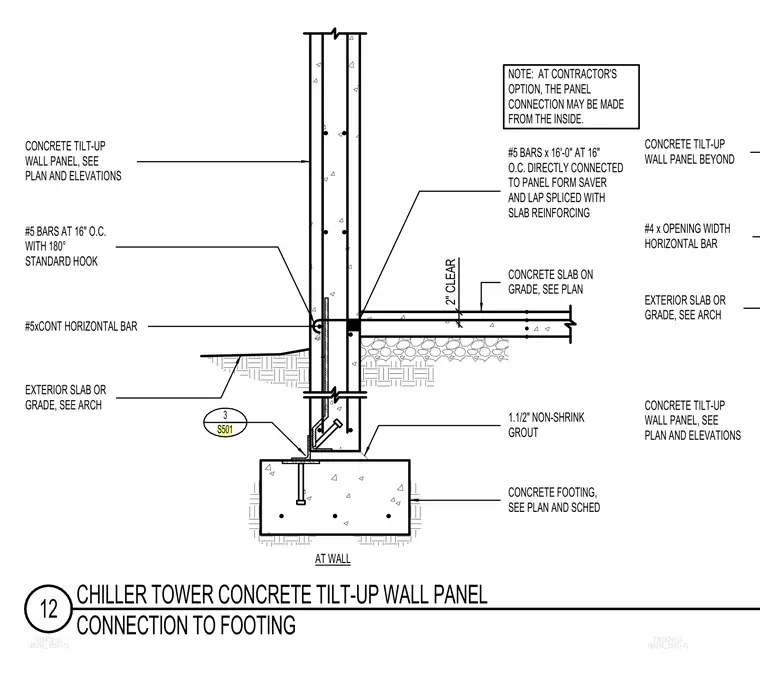

A concrete tilt-up wall panel bears on a concrete footing with one and one-half inches of non-shrink grout beneath the panel base. A number five bar at sixteen inches on center with a one hundred eighty degree standard hook connects into the footing and wall base. Number five bars at sixteen inches on center directly connect to the panel form saver and lap splice with the slab reinforcing. A number five continuous horizontal bar and a number four horizontal bar at opening widths reinforce the wall panel junction with the concrete slab on grade.
