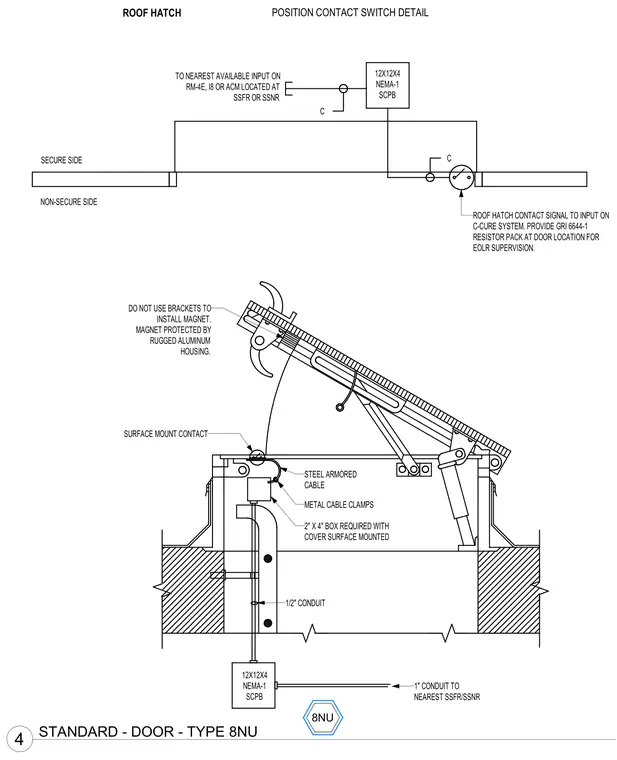

The roof hatch security system uses a surface mount contact switch installed directly on the frame without mounting brackets, protected by a rugged aluminum housing. Steel armored cable runs through metal cable clamps to a surface mounted two-inch by four-inch box with a cover. A half-inch conduit routes wiring down through the structure to a twelve-by-twelve-by-four NEMA-one SCPB enclosure. A one-inch conduit then extends from this junction box to the nearest secure side facility room or secure side non-secure room. The roof hatch position contact signal routes to an input on the C-Cure system, complete with a GRI 6644-one resistor pack located at the door for end-of-line resistor supervision.
SECURE SIDE NON-SECURE SIDE C 12X12X4 NEMA-1 SCPB C TO NEAREST AVAILABLE INPUT ON RM-4E, I8 OR ACM LOCATED AT SSFR OR SSNR 1" CONDUIT TO NEAREST SSFR/SSNR SURFACE MOUNT CONTACT 1/2" CONDUIT DO NOT USE BRACKETS TO INSTALL MAGNET. MAGNET PROTECTED BY RUGGED ALUMINUM HOUSING. STEEL ARMORED CABLE METAL CABLE CLAMPS 2" X 4" BOX REQUIRED WITH COVER SURFACE MOUNTED 12X12X4 NEMA-1 SCPB ROOF HATCH POSITION CONTACT SWITCH DETAIL ROOF HATCH CONTACT SIGNAL TO INPUT ON C-CURE SYSTEM. PROVIDE GRI 6644-1 RESISTOR PACK AT DOOR LOCATION FOR EOLR SUPERVISION. STANDARD - DOOR - TYPE 8NU 4 8NU
