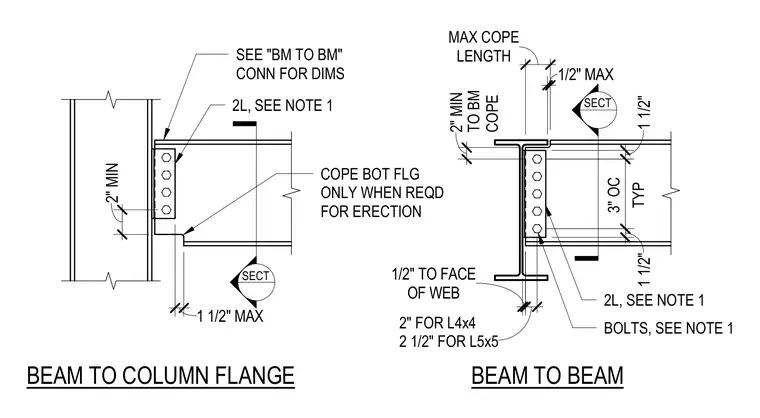

A structural steel beam frames into a column flange using double angles bolted to the beam web. The bottom flange of the beam is coped when required for erection with a specified maximum length and minimum clearance to the beam cope. The vertical bolt spacing is typical at three inches on center with designated end distances. The angles are positioned with specific setbacks from the face of the web depending on the angle size. A similar beam-to-beam connection detail is provided for comparison of dimensions and copes.
SECT SECT COPE BOT FLG ONLY WHEN REQD FOR ERECTION 2L, SEE NOTE 1 1/2" MAX TO BM COPE BEAM TO BEAM SEE "BM TO BM" CONN FOR DIMS 1 1/2" MAX BEAM TO COLUMN FLANGE 2" 2" FOR L4x4 2 1/2" FOR L5x5 1 1/2" 12" 1 1/2" 2" MIN 4 1/4" 2L, SEE NOTE 1 BOLTS, SEE NOTE 1 2" MIN OF WEB 1/2" TO FACE MAX COPE LENGTH 3" OC TYP
