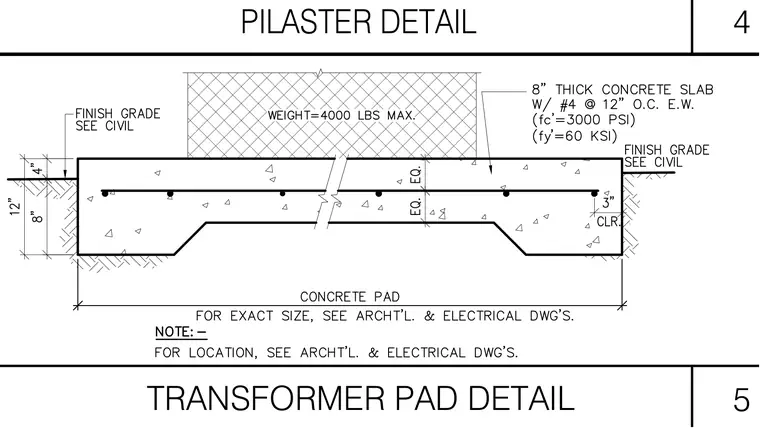

An eight-inch thick concrete slab is reinforced with number four bars at twelve inches on center each way, utilizing three thousand PSI concrete and sixty KSI reinforcing steel. The concrete pad features a thickened edge profile resting on compacted subgrade with finish grade levels determined per civil drawings. The transformer unit imposes a maximum weight of four thousand pounds onto the pad, with exact dimensions and final placement coordinated through architectural and electrical drawings.
