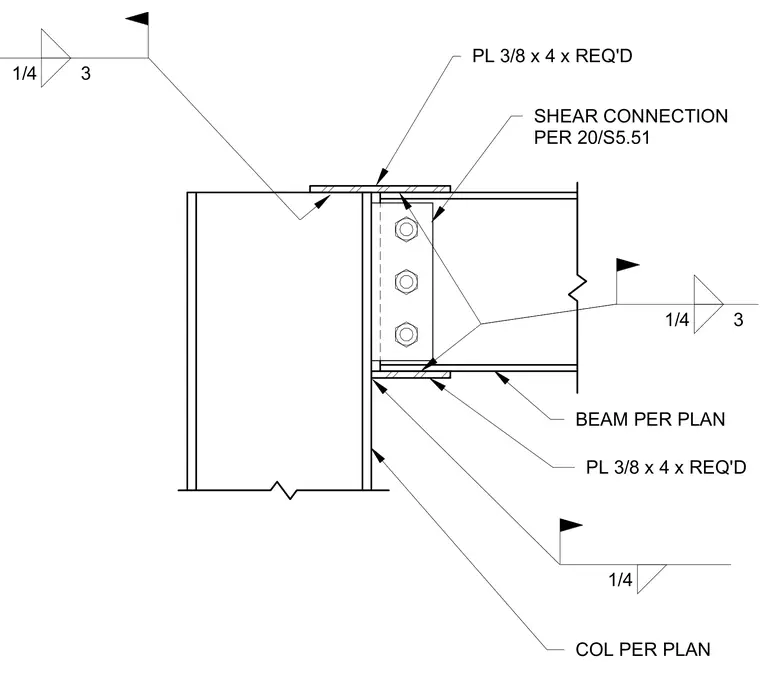

A structural steel beam frames into a column using top and bottom three-eighths-inch by four-inch moment plates welded with quarter-inch fillet welds. A separate shear connection is detailed per drawing twenty on sheet S5.51 using a bolted web connection. The beam and column sizes are sized per plan.
1/4 1/4 3 1/4 3 PL 3/8 x 4 x REQ'D PL 3/8 x 4 x REQ'D SHEAR CONNECTION PER 20/S5.51 COL PER PLAN BEAM PER PLAN
