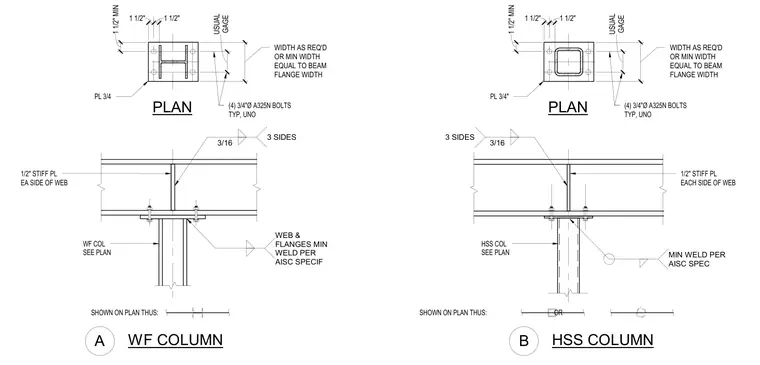

A continuous wide flange beam is supported by either a wide flange column or a hollow structural section column sized per plan. The connection utilizes a three-quarter inch plate welded to the column top with four three-quarter inch diameter ASTM A325N bolts typically. One-half inch stiffener plates are welded to each side of the beam web using three-sixteenth inch fillet welds on three sides. Minimum welds follow AISC specifications for web and flange connections. Dimensions include one and one-half inch minimum edge clearances and standard gauges as shown.
1/2" STIFF PL EA SIDE OF WEB WF COL SEE PLAN PLAN PL 3/4 (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2" SHOWN ON PLAN THUS: SHOWN ON PLAN THUS: OR HSS COL SEE PLAN 1/2" STIFF PL EACH SIDE OF WEB 3/16 3 SIDES MIN WELD PER AISC SPEC HSS COLUMN A WF COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2"
