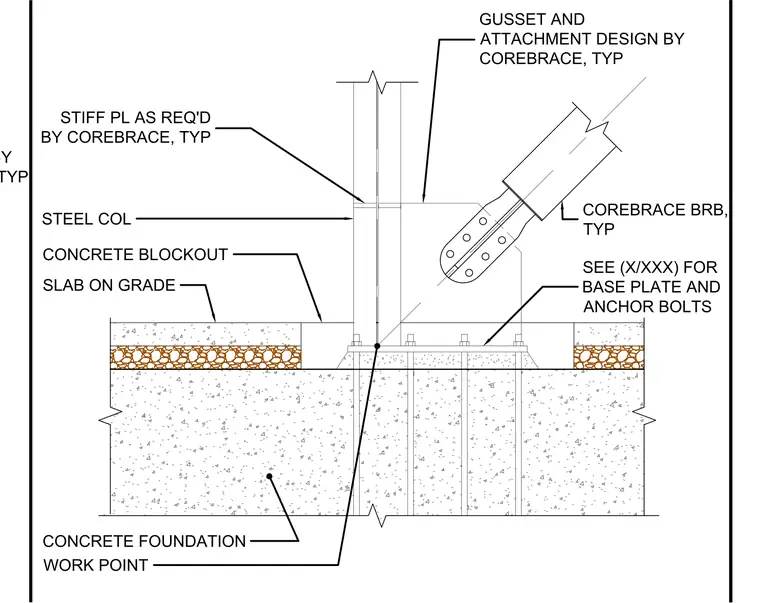

The assembly features a Corebrace buckling restrained brace connected to a steel column via a gusset plate. The gusset plate and its attachment are designed by the manufacturer, with stiffener plates provided as required by Corebrace. The steel column is anchored to a concrete foundation, with a concrete blockout provided at the slab-on-grade to accommodate the connection. Base plate and anchor bolt specifications are referenced to a separate drawing sheet. A defined work point is established at the intersection of the column centerline and the brace axis.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
