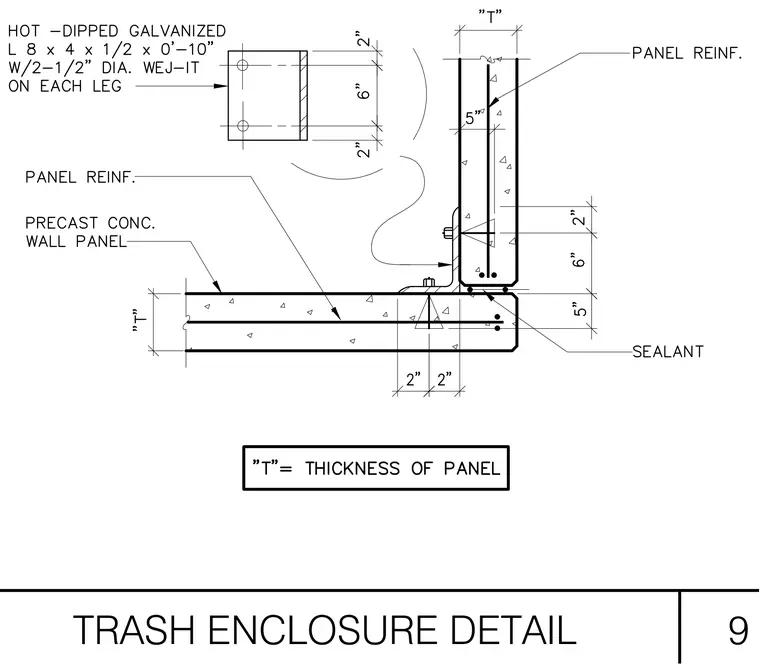

Precast concrete wall panels connect at a 90-degree corner using a hot-dipped galvanized angle measuring eight inches by four inches by one-half inch by zero-feet-ten-inches long. Two one-half-inch-diameter Wej-It expansion anchors secure each leg of the angle to the panels. Panel reinforcement is detailed throughout the concrete thickness T, and a joint sealant fills the exterior corner gap.
