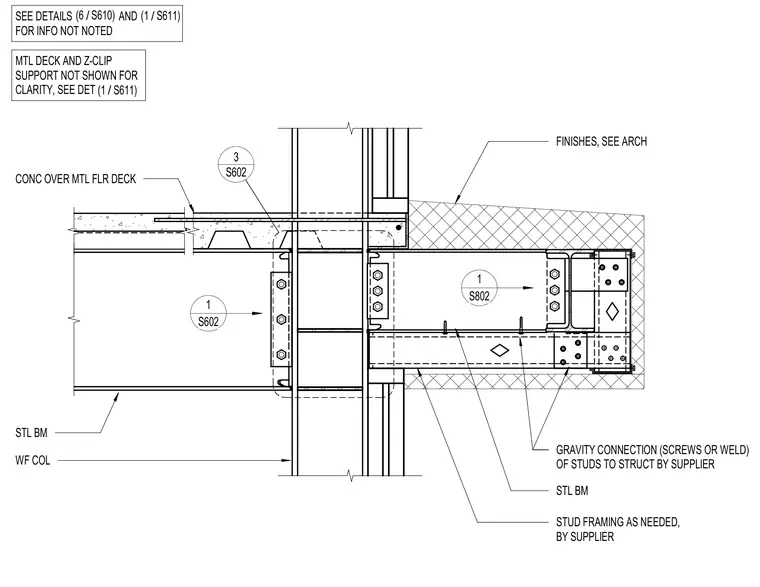

Concrete over metal floor deck bears on steel beams framing into a wide-flange steel column. Supplemental stud framing is provided by the supplier with gravity connections using screws or welds to the structure. Architectural finishes are coordinated per architectural drawings, and metal deck supports with Z-clips are detailed elsewhere.
CONC OVER MTL FLR DECK STL BM WF COL STL BM SEE DETAILS AND FOR INFO NOT NOTED / (1 S611) 1 S602 1 S802 S602 3 / (6 S610) FINISHES, SEE ARCH GRAVITY CONNECTION (SCREWS OR WELD) OF STUDS TO STRUCT BY SUPPLIER STUD FRAMING AS NEEDED, BY SUPPLIER MTL DECK AND Z-CLIP SUPPORT NOT SHOWN FOR CLARITY, SEE DET / (1 S611)
