A wide-flange beam or channel frames into an HSS column using a full-height single plate shear tab connection sized per schedule. A WT5x22.5 or WT7x26.5 shape, cut to fit, connects the beam flanges to the HSS column with unslotted holes and a "K" dimension per the AISC manual. Fillet welds of one-quarter inch are specified on two sides or three sides depending on the condition. The top of steel alignment accounts for elevation differences greater than three inches.

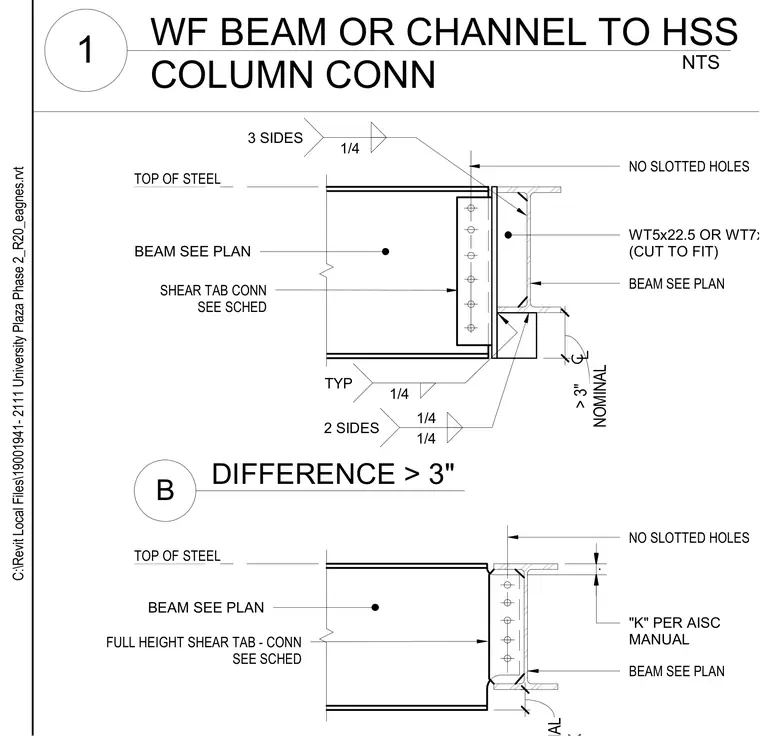

WT5x22.5 OR WT7x26.5 (CUT TO FIT) NO SLOTTED HOLES "K" PER AISC MANUAL BEAM SEE PLAN NO SLOTTED HOLES FULL HEIGHT SHEAR TAB - CONN SEE SCHED BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN SHEAR TAB CONN SEE SCHED 1/4 3 SIDES 1/4 TYP 1/4 1/4 2 SIDES TOP OF STEEL . NOMINAL > 3" DIFFERENCE > 3" B TOP OF STEEL C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt NTS 1 WF BEAM OR CHANNEL TO HSS COLUMN CONN
