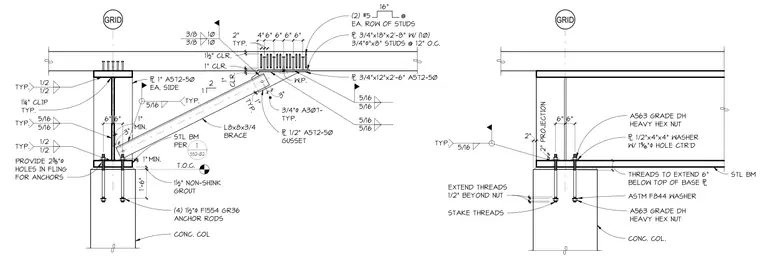

A chevron or diagonal brace connection frames into a concrete column and steel beam assembly utilizing an L8x8x3/4 structural steel brace welded with 5/16-inch fillet welds to a 1/2-inch A572-50 gusset plate. The gusset plate is welded to a 3/4-x-18-x-2-foot-8-inch base plate embedded with ten 3/4-inch diameter studs at 12 inches on center and reinforced with two number 5 rebars. The assembly anchors to a concrete column using four 1/2-inch diameter ASTM F1554 Grade 36 anchor rods with non-shrink grout underneath the base plate. Threaded rod anchorage with heavy hex nuts, washers, and staked threads extends 6 inches below the base plate.
T.O.C. GRID 6" 6" 2" STL BM CONC. COL. 5 1/2"x4"x4" WASHER W/ 17"& HOLE CTR'D A563 GRADE DH HEAVY HEX NUT 6" THREADS TO EXTEND 6" BELOW TOP OF BASE 5 ASTM F844 WASHER EXTEND THREADS 1/2" BEYOND NUT A563 GRADE DH HEAVY HEX NUT STAKE THREADS 3/4 " 3/4 " 5/16 TYP. 1 2 L8x8x3/4 BRACE 4" 6" 6" 6" 6" 2" 2" 2" TYP. GRID 1'-6" 6" 6" MIN. 1" MIN. 1" 1 1 /2" 1½" NON-SHINK GROUT (4) 1½"& F1554 GR36 ANCHOR RODS CONC. COL 3" STL BM PER 1 S52-02 PROVIDE 29"& HOLES IN FLING FOR ANCHORS 5 1" A572-50 EA. SIDE 1¼" CLIP TYP. 5/16 TYP. 1/2 1/2 TYP. 5/16 5/16 TYP. 1/2 1/2 TYP. 3" 3/4"& A307- TYP. CLR. 1" TYP. 1" 5 1/2" A572-50 GUSSET W.P. 5/16 5/16 5/16 5/16 1" 1 1/2" 1½" CLR. 1" CLR. 5 3/4"x12"x2'-6" A572-50 5 3/4"x18"x2'-8" W/ (10) 3/4"&"x8" STUDS @ 12" O.C. 3/8 10 3/8 10 (2) #5 @ EA. ROW OF STUDS 16" 2" PROJECTION
