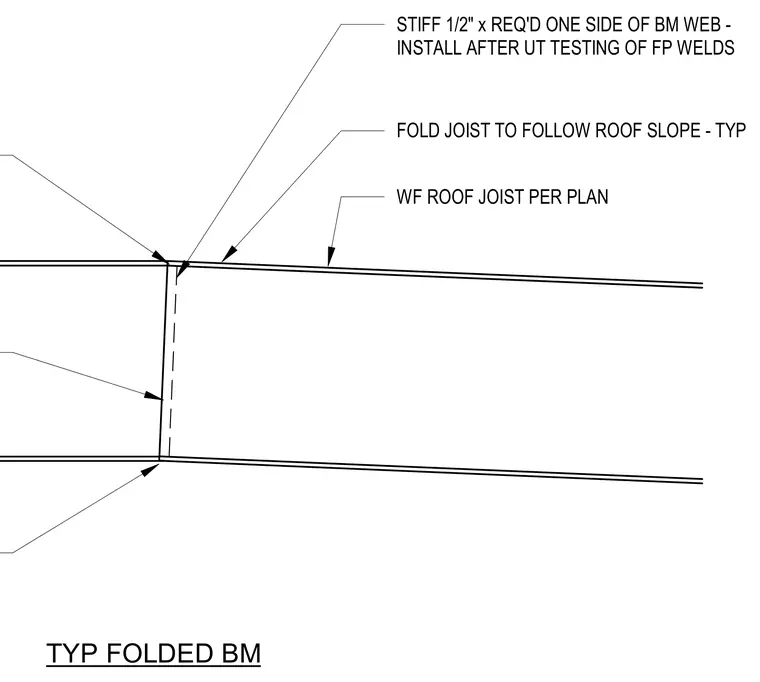

A wide-flange roof joist connects to a folded beam following the roof slope typically. A one-half-inch stiffener plate is placed on one side of the beam web and installed after ultrasonic testing of full-penetration welds is complete.
STIFF 1/2" x REQ'D ONE SIDE OF BM WEB - INSTALL AFTER UT TESTING OF FP WELDS FOLD JOIST TO FOLLOW ROOF SLOPE - TYP WF ROOF JOIST PER PLAN TYP FOLDED BM
