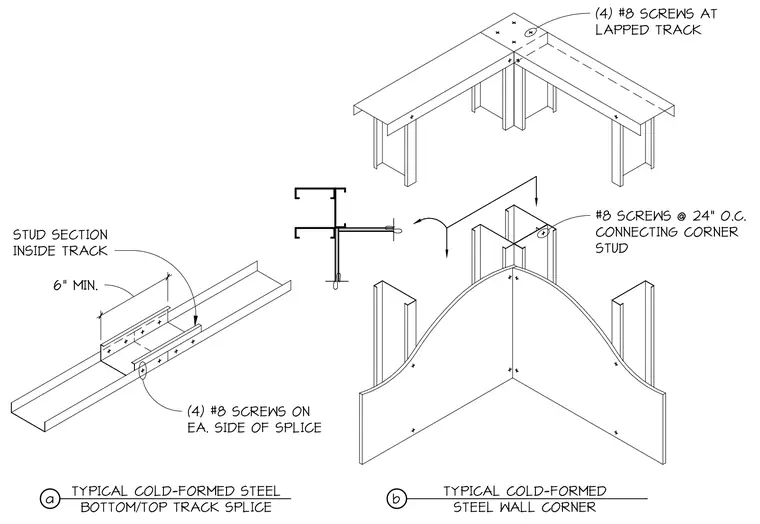

Cold-formed steel track splices utilize a six-inch minimum stud section nested inside the track secured with four number eight screws on each side of the splice. Wall corner assemblies join framing members with number eight screws spaced at twenty-four inches on center connecting the corner stud, with additional number eight screws placed at the lapped track. Members are aligned to maintain square corners and continuous track alignment.
6" MIN. STUD SECTION INSIDE TRACK a TYPICAL COLD-FORMED STEEL BOTTOM/TOP TRACK SPLICE b TYPICAL COLD-FORMED STEEL WALL CORNER (4) #8 SCREWS ON EA. SIDE OF SPLICE (4) #8 SCREWS AT LAPPED TRACK #8 SCREWS @ 24" O.C. CONNECTING CORNER STUD
