Footing rebar reinforcing details at corners and intersections include continuous top and bottom bars extending to the far side of intersecting footings with standard ninety-degree hooks. Additional top and bottom bars match the size of outside face bars at corners. Ties extend through intersections and corners, spaced with a maximum two-inch clearance. Class B splices are provided with a maximum two-inch spacing between lap bars.

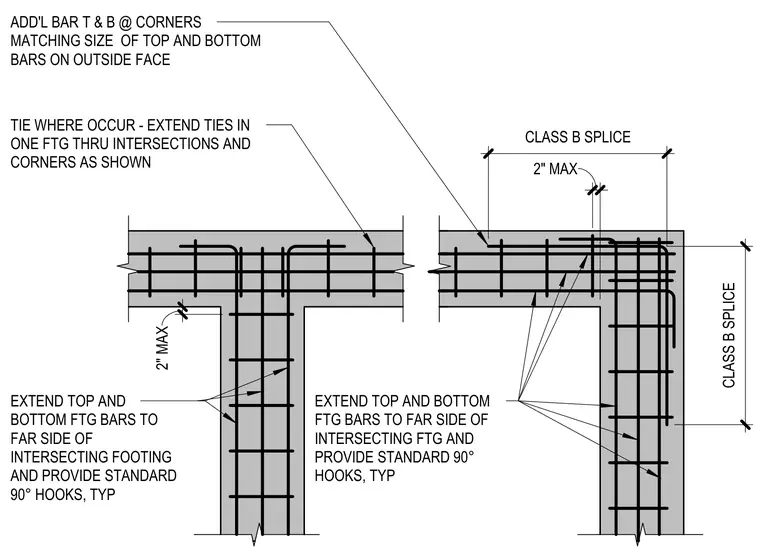

TIE WHERE OCCUR - EXTEND TIES IN ONE FTG THRU INTERSECTIONS AND CORNERS AS SHOWN ADD'L BAR T & B @ CORNERS MATCHING SIZE OF TOP AND BOTTOM BARS ON OUTSIDE FACE EXTEND TOP AND BOTTOM FTG BARS TO FAR SIDE OF INTERSECTING FTG AND PROVIDE STANDARD 90° HOOKS, TYP EXTEND TOP AND BOTTOM FTG BARS TO FAR SIDE OF INTERSECTING FOOTING AND PROVIDE STANDARD 90° HOOKS, TYP CLASS B SPLICE CLASS B SPLICE 2" MAX 2" MAX
