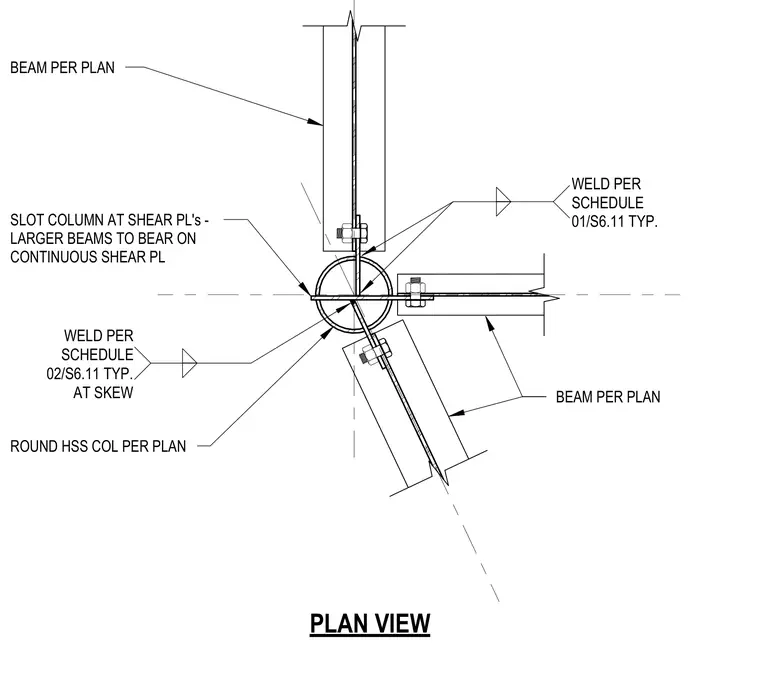

A plan view of skewed steel canopy beams frames into a round hollow structural section column. The column is slotted to receive continuous shear plates, allowing larger beams to bear directly on the continuous plate. Shear connections are secured with bolts and welded per the structural schedule, with specific weld configurations applied at skewed angles.
PLAN VIEW SLOT COLUMN AT SHEAR PL's - LARGER BEAMS TO BEAR ON CONTINUOUS SHEAR PL WELD PER SCHEDULE 02/S6.11 TYP. AT SKEW WELD PER SCHEDULE 01/S6.11 TYP. BEAM PER PLAN BEAM PER PLAN ROUND HSS COL PER PLAN
