Typical Slab Edge Detail at Steel Beams

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Floors / Slabs Decks Bracing

Connections

Bracing Connection Welded Connection Shear Stud / Composite Deck Attachment

About this detail

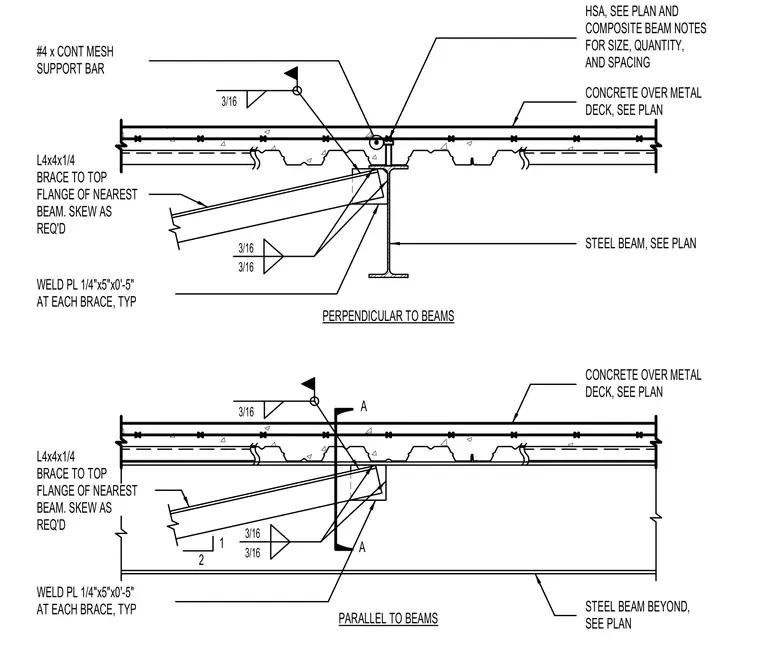

Lateral bracing connects to steel beams beneath a concrete over metal deck floor slab in both perpendicular and parallel configurations. An L4x4x1/4 angle brace extends to the top flange of intermediate steel beams, skewed as required, and fastens with a 1/4-inch by 5-inch by 0-foot 5-inch plate welded with three-sixteenths-inch fillet welds at each brace. The concrete slab incorporates a continuous number 4 mesh support bar and headed stud anchors sized per structural plans. A three-sixteenths-inch fillet weld secures the brace assembly directly to the steel beam top flange.
