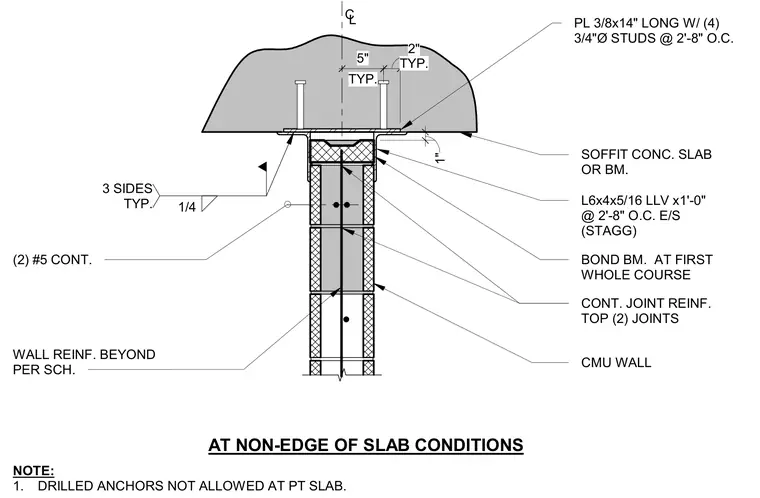

An embedded 3/8-inch by 14-inch plate with four 3/4-inch diameter studs spaced at 2 feet 8 inches on center is cast into the soffit of the concrete slab or beam. An L6x4x5/16 long leg vertical angle, measuring 1 foot 0 inches long at 2 feet 8 inches on center each side staggered, connects to the embedded plate with a 1/4-inch fillet weld on three sides. The concrete masonry unit wall features a bond beam at the first whole course, continuous joint reinforcement in the top two joints, and two continuous number 5 vertical reinforcing bars. Drilled anchors are prohibited at post-tensioned slabs.
AT NON-EDGE OF SLAB CONDITIONS L6x4x5/16 LLV x1'-0" @ 2'-8" O.C. E/S (STAGG) SOFFIT CONC. SLAB OR BM. (2) #5 CONT. NOTE: 1. DRILLED ANCHORS NOT ALLOWED AT PT SLAB. CMU WALL TYP. 2" TYP. 5" PL 3/8x14" LONG W/ (4) 3/4"Ø STUDS @ 2'-8" O.C. 3 SIDES TYP. 1/4 CL 1" WALL REINF. BEYOND PER SCH. BOND BM. AT FIRST WHOLE COURSE CONT. JOINT REINF. TOP (2) JOINTS
