A cold-formed steel stud connects to the face of the supporting structure using a rigid or slip wall connection clip. An 8-inch long 54 mil reinforcement track is inserted into the stud web via knock out holes and secured with six #10 screws, utilizing three screws on each side. The connection clip is fastened to the reinforcement track and supporting structure using #12 screws per the connection detail.

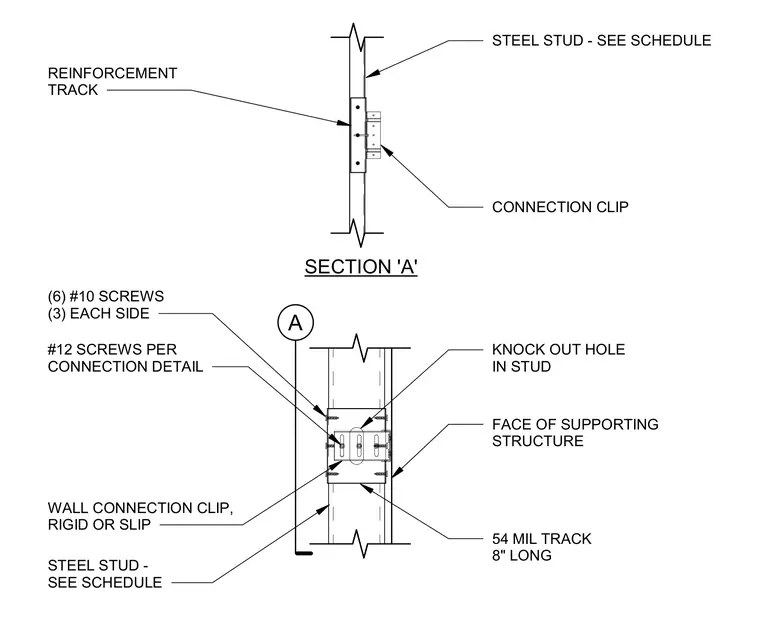

A STEEL STUD - SEE SCHEDULE CONNECTION CLIP REINFORCEMENT TRACK SECTION 'A' KNOCK OUT HOLE IN STUD FACE OF SUPPORTING STRUCTURE 54 MIL TRACK 8" LONG (6) #10 SCREWS (3) EACH SIDE WALL CONNECTION CLIP, RIGID OR SLIP #12 SCREWS PER CONNECTION DETAIL STEEL STUD - SEE SCHEDULE
