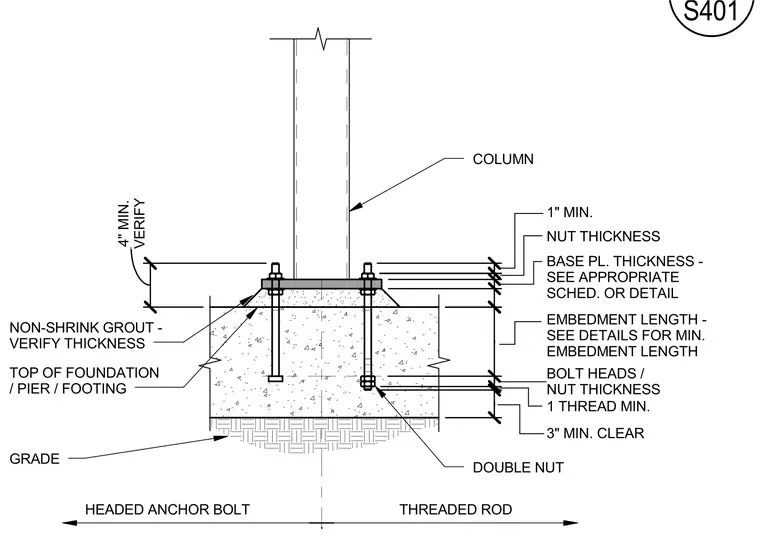

A column base plate anchors to a concrete foundation or pier with a non-shrink grout pad beneath the plate. Headed anchor bolts and threaded rods with double nuts provide anchorage into the concrete, maintaining a minimum embedment length and clearance requirements. The base plate thickness is sized per the appropriate schedule or detail, with a minimum projection above the grout. Bolt heads and nuts are detailed with specific thread projections and minimum clearances from the edge of the concrete.
HEADED ANCHOR BOLT THREADED ROD GRADE TOP OF FOUNDATION / PIER / FOOTING NON-SHRINK GROUT - VERIFY THICKNESS BASE PL. THICKNESS - SEE APPROPRIATE SCHED. OR DETAIL 1 THREAD MIN. 3" MIN. CLEAR COLUMN BOLT HEADS / NUT THICKNESS NUT THICKNESS 1" MIN. DOUBLE NUT EMBEDMENT LENGTH - SEE DETAILS FOR MIN. EMBEDMENT LENGTH VERIFY 4" MIN. - -- - - . S401
