Structural · S-ENS8T

Concrete Wall Panel Foundation and Slab Dowel Connection

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

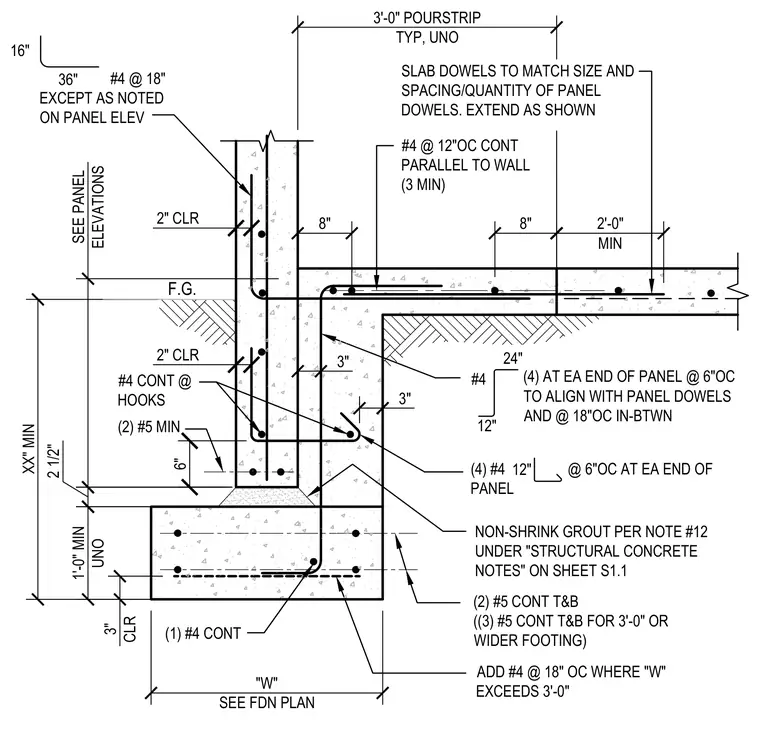

A concrete wall panel bears on a continuous concrete footing with a slab-on-grade pour strip connection. The 8-inch thick concrete wall panel is reinforced with number 4 bars at 18 inches on center, except as noted on the panel elevations, with a 2-inch concrete clearance. The connection incorporates a 3-foot pour strip, with slab dowels matching the size, spacing, and quantity of the panel dowels extending into the slab. Four number 4 bars are placed at each end of the panel at 6 inches on center to align with panel dowels, and at 18 inches on center in-between. The footing includes two number 5 continuous top and bottom bars, increased to three number 5 bars for footings 3 feet or wider, with an additional number 4 bar at 18 inches on center where the footing width exceeds 3 feet. A 2.5-inch non-shrink grout layer sits beneath the panel over the footing, and number 4 continuous hooked bars tie the assembly together.
