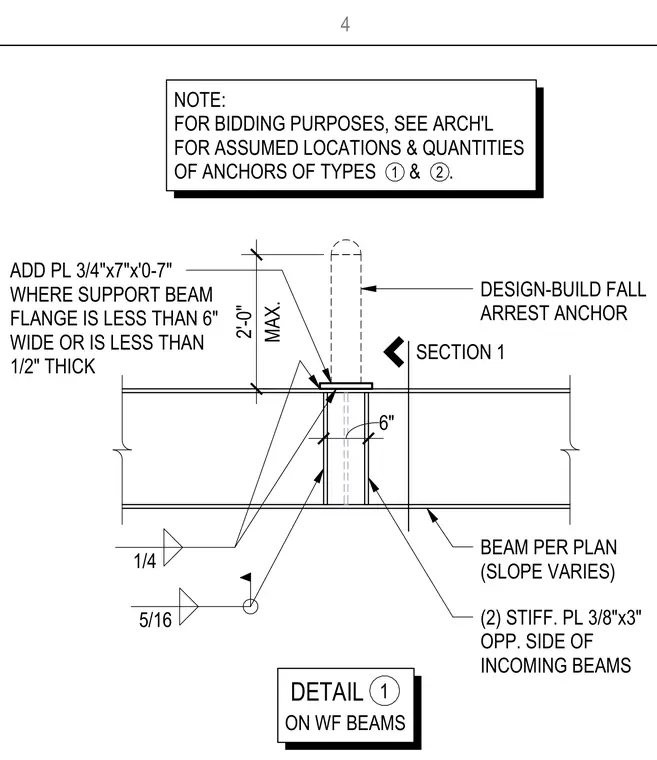

A design-build fall arrest anchor mounts directly to a wide flange support beam with a variable slope. An additional 3/4-inch by 7-inch plate is added where the support beam flange is less than six inches wide or less than 1/2-inch thick. Two 3/8-inch stiffener plates are welded to the opposite side of the incoming beams. Fillet welds of 1/4-inch and 5/16-inch secure the assembly components.
DETAIL ON WF BEAMS DESIGN-BUILD FALL ARREST ANCHOR BEAM PER PLAN (SLOPE VARIES) (2) STIFF. PL 3/8"x3" OPP. SIDE OF INCOMING BEAMS NOTE: FOR BIDDING PURPOSES, SEE ARCH'L FOR ASSUMED LOCATIONS & QUANTITIES OF ANCHORS OF TYPES & . 1 2 1 SECTION 1 5/16 1/4 ADD PL 3/4"x7"x'0-7" WHERE SUPPORT BEAM FLANGE IS LESS THAN 6" WIDE OR IS LESS THAN 1/2" THICK 6" MAX. 2'-0" 4
