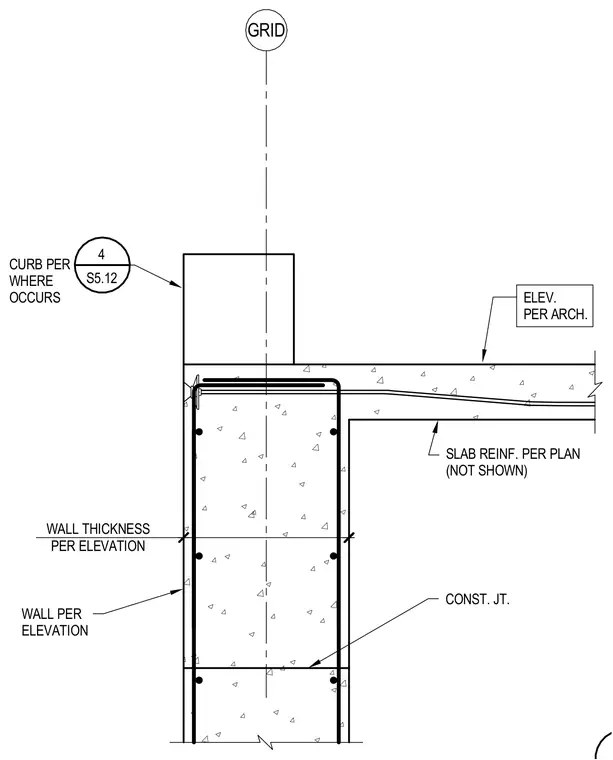

This structural detail shows the connection between a concrete wall and a suspended concrete slab centered on a grid line. The wall features vertical and horizontal reinforcing bars with a variable thickness per the architectural elevations. A construction joint is located within the lower portion of the concrete wall section. The concrete slab frames into the wall with reinforcement sized per the structural plans. A concrete curb is located at the top of the wall assembly where indicated by the architectural drawings.
4 S5.12 WALL PER ELEVATION ELEV. PER ARCH. SLAB REINF. PER PLAN (NOT SHOWN) CONST. JT. CURB PER WHERE OCCURS GRID WALL THICKNESS PER ELEVATION
