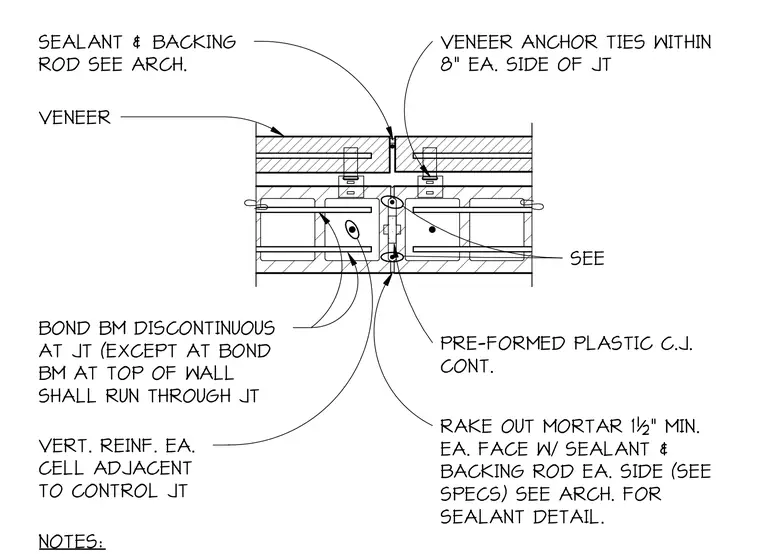

This concrete masonry unit wall and veneer control joint assembly incorporates pre-formed plastic control joints continuously through the wall section. Veneer anchor ties are spaced within eight inches on each side of the joint. Vertical reinforcement is placed in each cell adjacent to the control joint. The bond beam is discontinuous at the joint except at the top of the wall where it runs through. Mortar is raked out one and one-half inches minimum on each face with sealant and backing rod installed on each side.
VENEER ANCHOR TIES WITHIN 8" EA. SIDE OF JT PRE-FORMED PLASTIC C.J. CONT. RAKE OUT MORTAR 1½" MIN. EA. FACE W/ SEALANT & BACKING ROD EA. SIDE (SEE SPECS) SEE ARCH. FOR SEALANT DETAIL. SEALANT & BACKING ROD SEE ARCH. VENEER BOND BM DISCONTINUOUS AT JT (EXCEPT AT BOND BM AT TOP OF WALL SHALL RUN THROUGH JT VERT. REINF. EA. CELL ADJACENT TO CONTROL JT NOTES: SEE
