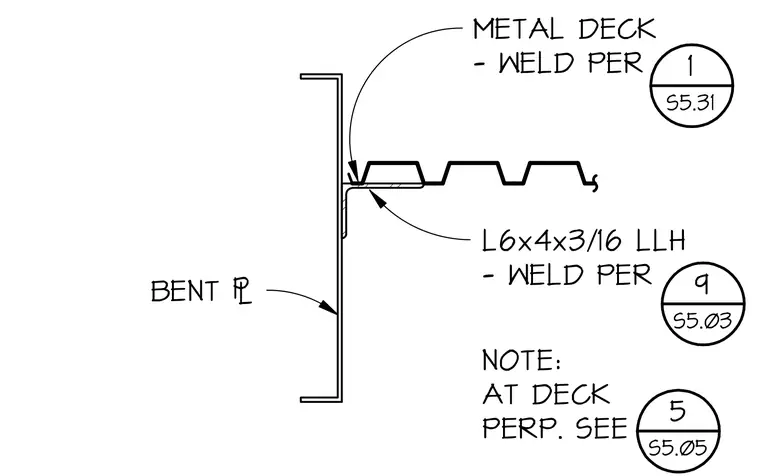

Metal deck bears on an L6x4x3/16 long-leg-horizontal angle welded per sheet S5.03. The angle is supported by a bent plate and secured with a welded connection. The metal deck is welded per sheet S5.31. Conditions at perpendicular deck orientations are referenced to sheet S5.05.
METAL DECK - WELD PER BENT ( 1 S5.31 L6x4x3/16 LLH - WELD PER 9 S5.03 NOTE: AT DECK PERP. SEE 5 S5.05
