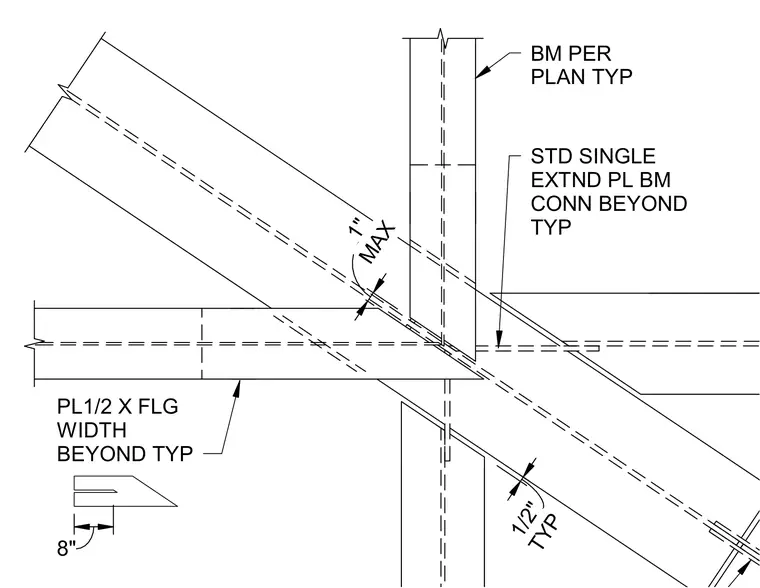

A sloped framing beam connects to the primary structural member using a standard single extended plate connection. A half-inch thick plate extending the flange width is detailed beyond the typical connection with an eight-inch dimension. A one-inch maximum clearance and a half-inch typical gap are maintained at the intersection.
BM PER PLAN TYP TYP 1/2" PL1/2 X FLG WIDTH BEYOND TYP 8" STD SINGLE EXTND PL BM CONN BEYOND TYP MAX 1"
