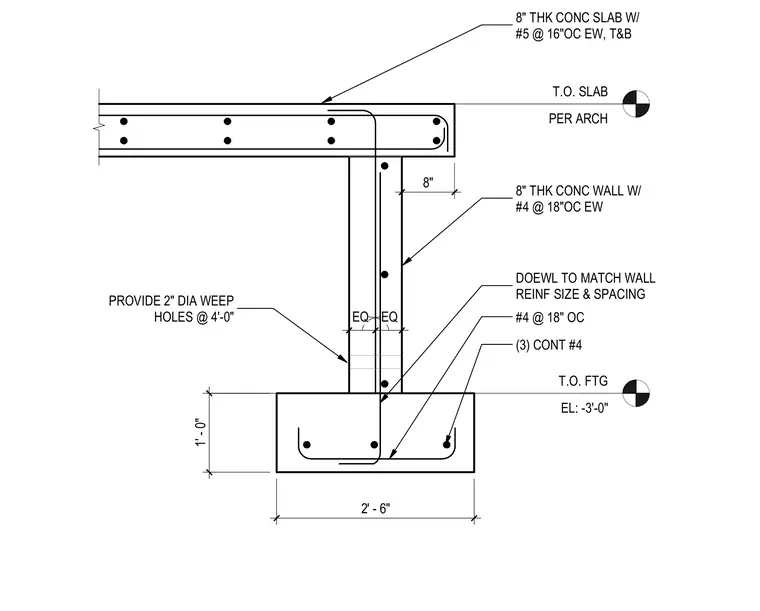

An eight-inch-thick concrete slab reinforced with number five bars at sixteen inches on center each way top and bottom bears on an eight-inch-thick concrete wall. The wall is reinforced with number four bars at eighteen inches on center each way and ties into the footing with matching dowels. The continuous footing measures two feet six inches wide by one foot zero inches deep and contains three continuous number four bars. Two-inch diameter weep holes are spaced at four feet on center through the wall.
T.O. SLAB PER ARCH 8" THK CONC SLAB W/ #5 @ 16"OC EW, T&B 8" 8" THK CONC WALL W/ #4 @ 18"OC EW DOEWL TO MATCH WALL REINF SIZE & SPACING EQ EQ #4 @ 18" OC (3) CONT #4 T.O. FTG EL: -3'-0" PROVIDE 2" DIA WEEP HOLES @ 4'-0" 1' - 0" 2' - 6"
