An angle clip measuring L 4x4x68 mil by one foot four inches long connects to the underside of a concrete-filled metal deck. At concrete and metal deck conditions, attachment uses two zero-point-one-five-seven-inch diameter Hilti X-U powder-actuated fasteners with one and one-quarter inch embedment at each flute for a total of four fasteners. At metal deck only conditions, attachment uses four number-twelve self-tapping screws at each flute for a total of four fasteners perpendicular to the flutes. A stud kicker sized and spaced per wall sections connects to the clip using four number-ten self-tapping screws.

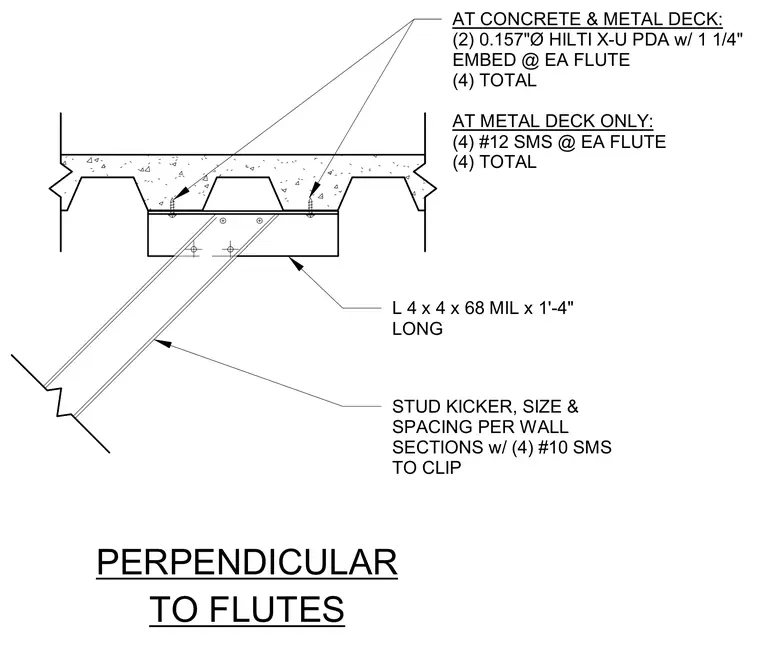

L 4 x 4 x 68 MIL x 1'-4" LONG STUD KICKER, SIZE & SPACING PER WALL SECTIONS w/ (4) #10 SMS TO CLIP AT CONCRETE & METAL DECK: (2) 0.157"Ø HILTI X-U PDA w/ 1 1/4" EMBED @ EA FLUTE (4) TOTAL AT METAL DECK ONLY: (4) #12 SMS @ EA FLUTE (4) TOTAL PERPENDICULAR TO FLUTES
