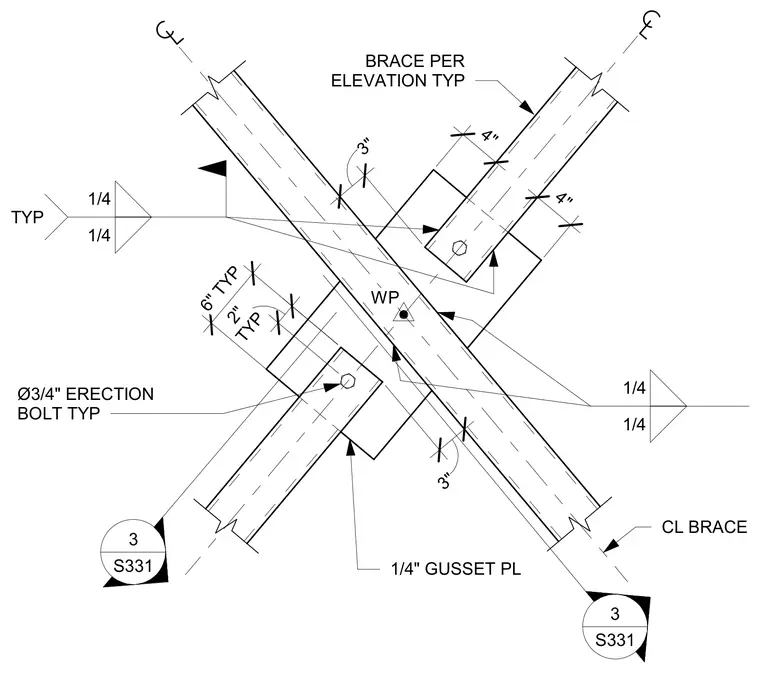

A quarter-inch gusset plate connects intersecting structural steel braces centered on a common work point. Each brace is secured with a three-quarter-inch diameter erection bolt and tied to the gusset plate with typical quarter-inch fillet welds.
BRACE PER ELEVATION TYP TYP 2" 6" TYP 3" 3" 4" 4" 3 S331 3 S331 1/4" GUSSET PL CL BRACE 1/4 1/4 TYP Ø3/4" ERECTION BOLT TYP 1/4 1/4 WP
