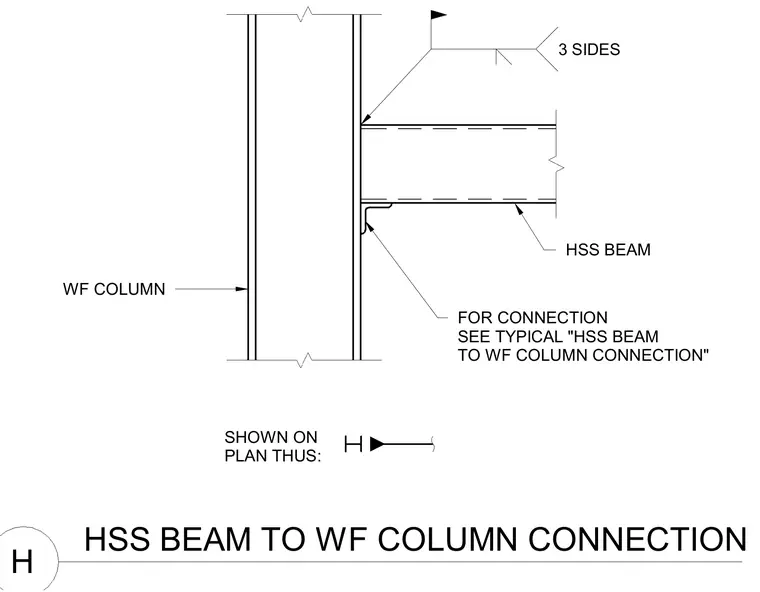

An HSS beam frames into a wide-flange steel column using a bottom seat angle and a welded connection on three sides at the top flange. The connection references a typical detail for complete fabrication and sizing requirements as shown on plan.
HSS BEAM TO WF COLUMN CONNECTION H SHOWN ON PLAN THUS: WF COLUMN HSS BEAM FOR CONNECTION SEE TYPICAL "HSS BEAM TO WF COLUMN CONNECTION" 3 SIDES
