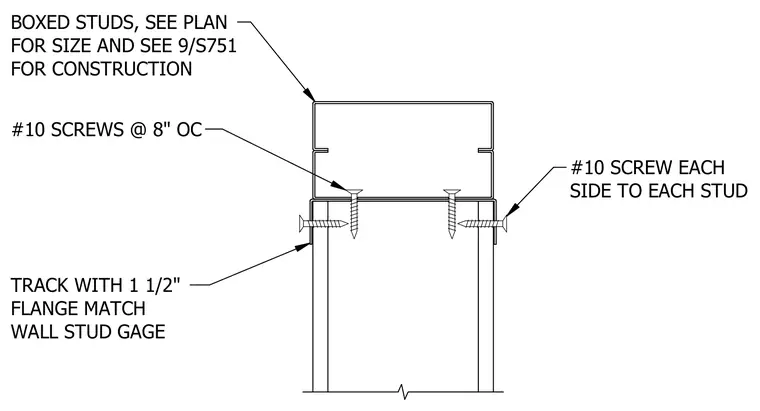

Boxed cold-formed metal studs are capped with a track featuring one-and-a-half-inch flanges matching the wall stud gauge. Number ten screws are spaced at eight inches on center through the track. Number ten screws fasten each side of the track to each vertical stud.
BOXED STUDS, SEE PLAN FOR SIZE AND SEE 9/S751 FOR CONSTRUCTION #10 SCREWS @ 8" OC TRACK WITH 1 1/2" FLANGE MATCH WALL STUD GAGE #10 SCREW EACH SIDE TO EACH STUD
