Structural · S-EN3BR

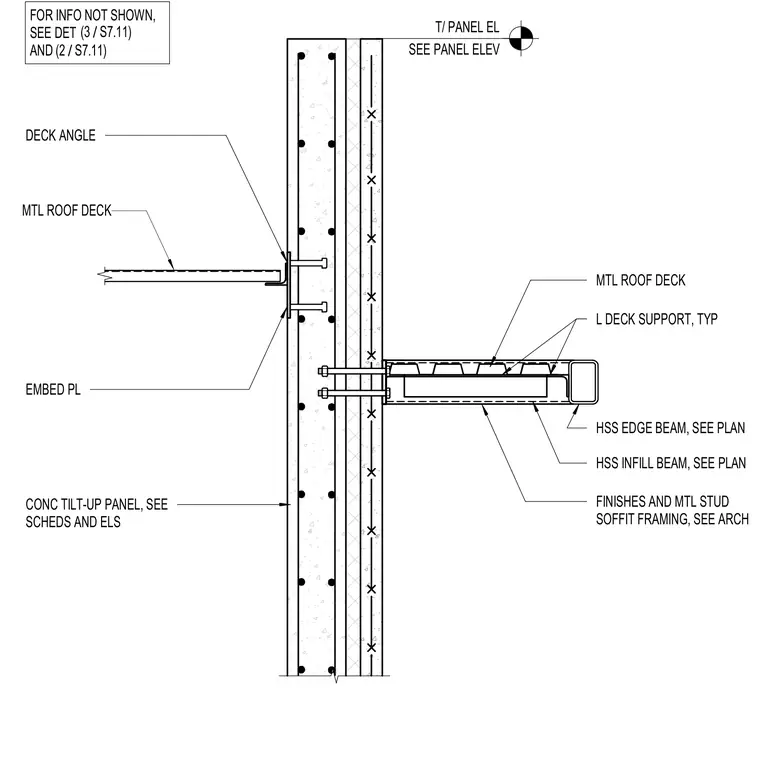

Typical Concrete Tilt-Up Panel at Canopy

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Roofs Canopies Ceilings Decks Arches Anchors / Embeds

Connections

HSS Connection Embed Plate

About this detail

A concrete tilt-up wall panel interfaces with a canopy roof structure, utilizing an embed plate and a deck angle to support a metal roof deck. An HSS edge beam and HSS infill beam frame the canopy roof, with typical angle deck supports tied back to the concrete wall via threaded embeds. Metal stud soffit framing and finishes are integrated below the canopy as indicated in architectural drawings. Additional information regarding panel elevations and schedules is cross-referenced on related structural sheets.
