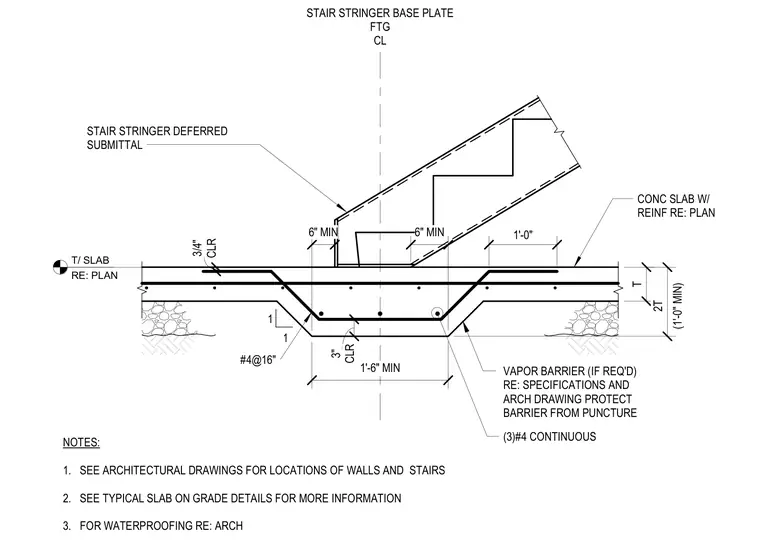

A structural stair stringer base plate bears upon a reinforced concrete slab on grade incorporating a thickened slab footing depression. The concrete slab is reinforced with three continuous number four bars and transverse number four bars spaced at sixteen inches on center. A vapor barrier is installed beneath the slab, with instructions to protect the barrier from punctures and reference architectural drawings for waterproofing requirements. The stair stringer connection is designated as a deferred submittal. Clearances include three-quarters of an inch at the top reinforcement and three inches of clearance at the bottom footing depression.
CONC SLAB W/ REINF RE: PLAN STAIR STRINGER DEFERRED SUBMITTAL T/ SLAB RE: PLAN 1 1 (3)#4 CONTINUOUS #4@16" NOTES: 1. SEE ARCHITECTURAL DRAWINGS FOR LOCATIONS OF WALLS AND STAIRS 2. SEE TYPICAL SLAB ON GRADE DETAILS FOR MORE INFORMATION 3. FOR WATERPROOFING RE: ARCH T (1'-0" MIN) 2T CLR 3" CLR 3/4" 1'-0" STAIR STRINGER BASE PLATE FTG CL VAPOR BARRIER (IF REQ'D) RE: SPECIFICATIONS AND ARCH DRAWING PROTECT BARRIER FROM PUNCTURE 6" MIN 6" MIN 1'-6" MIN
