Structural · S-EMVTM

Steel Beam Connection to Concrete Tilt-Up Panel Joint

Materials

Concrete Steel

Elements

Anchors / Embeds Connections / Plates

Connections

Welded Connection Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

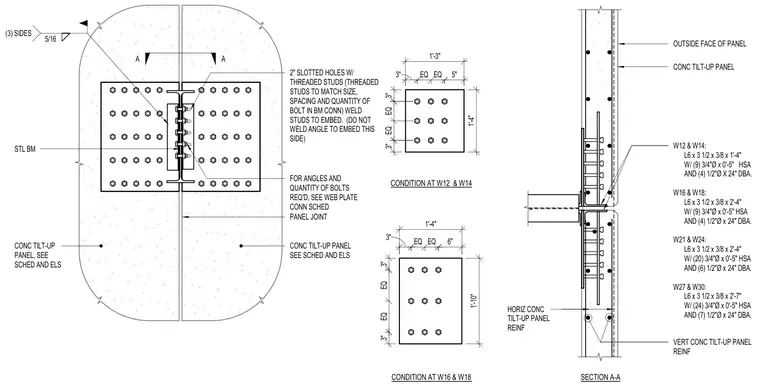

A steel beam connects through a web plate into an embedded angle featuring two-inch slotted holes with threaded studs matching the beam connection bolt size, spacing, and quantity. The angle is welded to the embed plate with studs, while being left unwelded to the embed on one specific side. Angle sizes and bolt configurations vary by beam size, utilizing specified dimensions such as L6x3-1/2x3/8 angles with 3/4-inch heavy stud anchors and 1/2-inch deformed bar anchors. A 5/16-inch fillet weld is applied on three sides as indicated.
