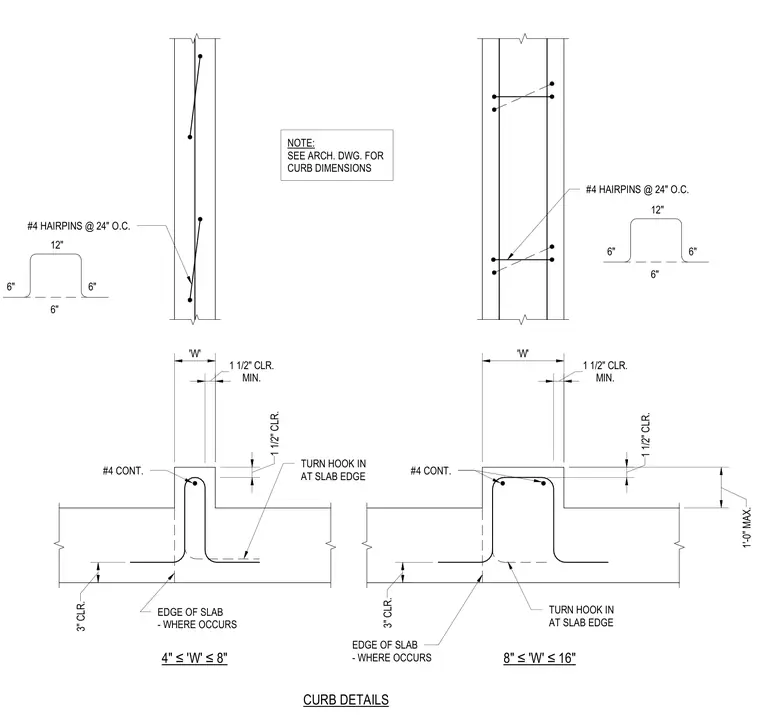

Concrete slab-on-grade curb conditions with varying widths from four to sixteen inches. Reinforcement includes continuous number four bars and number four hairpins spaced at twenty-four inches on center with specified clearances and turned hooks at the slab edge. General notes direct coordination with architectural drawings for curb dimensions.
12" 6" 6" 6" #4 HAIRPINS @ 24" O.C. NOTE: SEE ARCH. DWG. FOR CURB DIMENSIONS 12" 6" 6" 6" #4 HAIRPINS @ 24" O.C. 'W' MIN. 1 1/2" CLR. 1 1/2" CLR. TURN HOOK IN AT SLAB EDGE #4 CONT. 3" CLR. EDGE OF SLAB - WHERE OCCURS 4" ≤'W' ≤8" 8" ≤'W' ≤16" 'W' MIN. 1 1/2" CLR. 1 1/2" CLR. #4 CONT. 3" CLR. EDGE OF SLAB - WHERE OCCURS TURN HOOK IN AT SLAB EDGE CURB DETAILS 1'-0" MAX.
