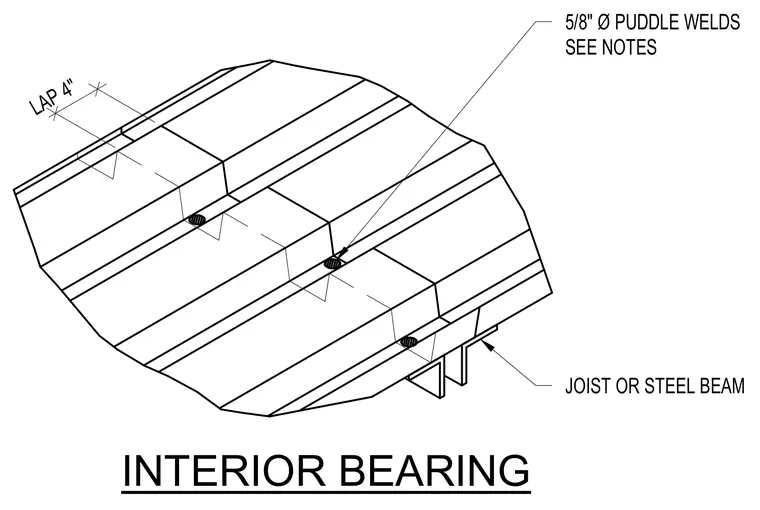

An interior steel deck profile bears directly across a supporting joist or structural steel beam. The metal deck sheets feature a four-inch lap joint. Five-eighths-inch diameter puddle welds secure the deck to the underlying support member at spacing specified in structural notes.
