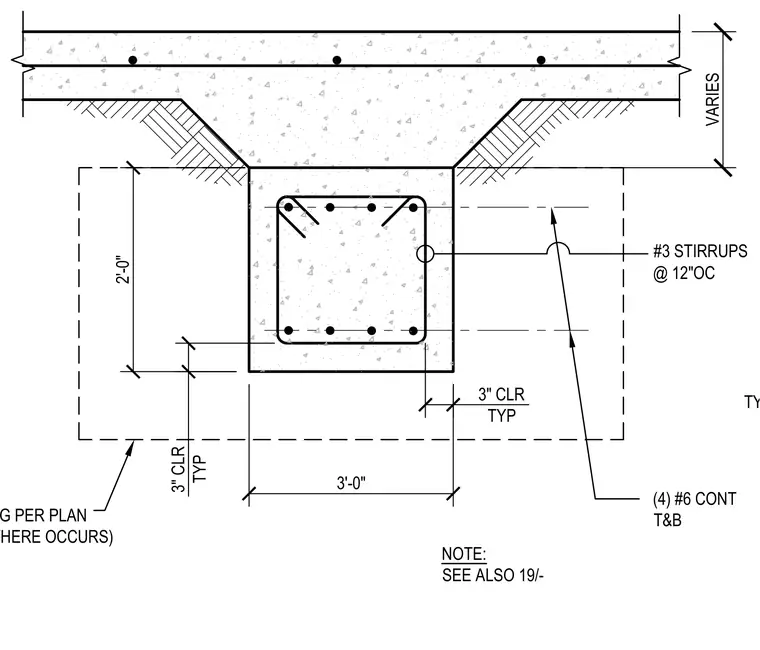

A concrete tie beam measuring two feet by three feet features four number six continuous top and bottom reinforcing bars. Number three stirrups are spaced at twelve inches on center with three inches of typical clearance. The footing is sized per plan where it occurs, and a variable dimension applies above the beam. Reference note nineteen provides additional coordination.
2'-0" 3'-0" 3" CLR TYP 3" CLR TYP FTG PER PLAN (WHERE OCCURS) #3 STIRRUPS @ 12"OC (4) #6 CONT T&B NOTE: SEE ALSO 19/- VARIES TYP
