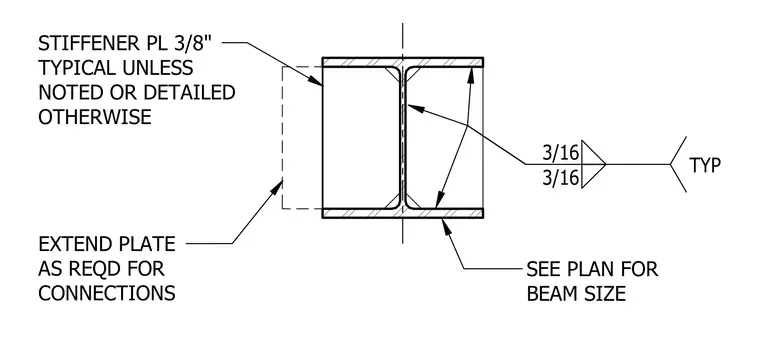

Three-eighths-inch thick stiffener plates are welded to the steel beam web and flanges with three-sixteenths-inch typical fillet welds. The stiffener plate extends as required for framing connections, with beam sizes sized per plan.
SEE PLAN FOR BEAM SIZE EXTEND PLATE AS REQD FOR CONNECTIONS STIFFENER PL 3/8" TYPICAL UNLESS NOTED OR DETAILED OTHERWISE 3/16 3/16 TYP
