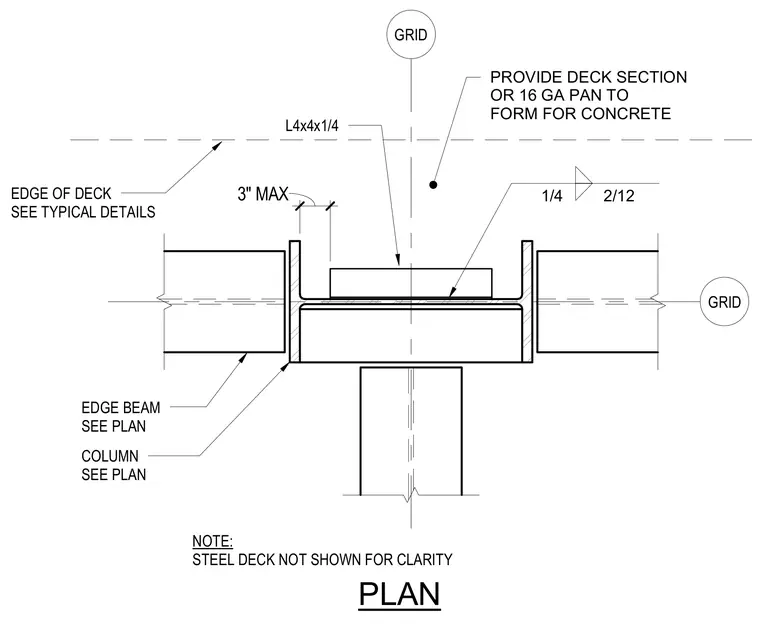

An exterior column aligns with a grid line and connects to an edge beam sized per plan. An L4x4x1/4 angle is positioned with a three-inch maximum clearance, accompanied by a deck section or a sixteen gauge pan to form for concrete. A quarter-inch fillet weld secures the assembly, and the steel deck is omitted for clarity.
GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2/12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
