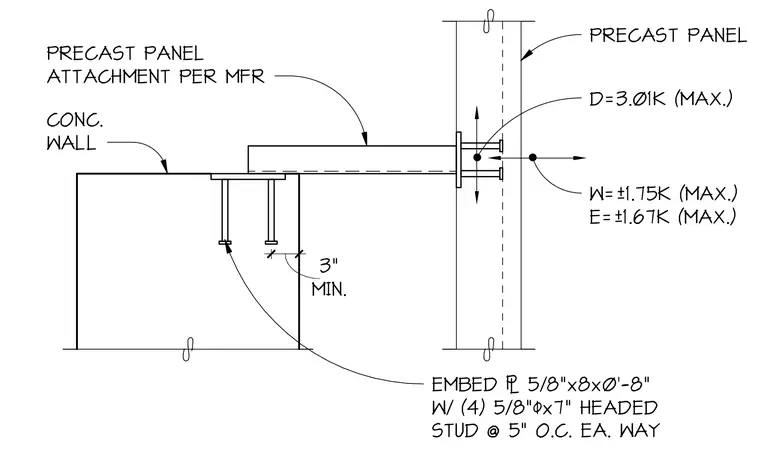

A minimum 3-inch precast panel is anchored to a concrete wall utilizing a manufacturer-specified attachment assembly. The connection features a 5/8-inch by 8-inch by 8-foot embed plate anchored into the concrete wall with four 5/8-inch diameter by 7-inch headed studs spaced at 5 inches on center each way. Design loads indicate a maximum dead load of 3.01 kips, a maximum wind load of plus or minus 1.75 kips, and a maximum seismic load of plus or minus 1.67 kips.
MIN. 3" PRECAST PANEL ATTACHMENT PER MFR CONC. WALL EMBED 5/8"x8x0' -8" W/ (4) 5/8"!x7" HEADED STUD @ 5" O.C. EA. WAY PRECAST PANEL D=3.01K (MAX.) W=±1.75K (MAX.) E=±1.67K (MAX.)
