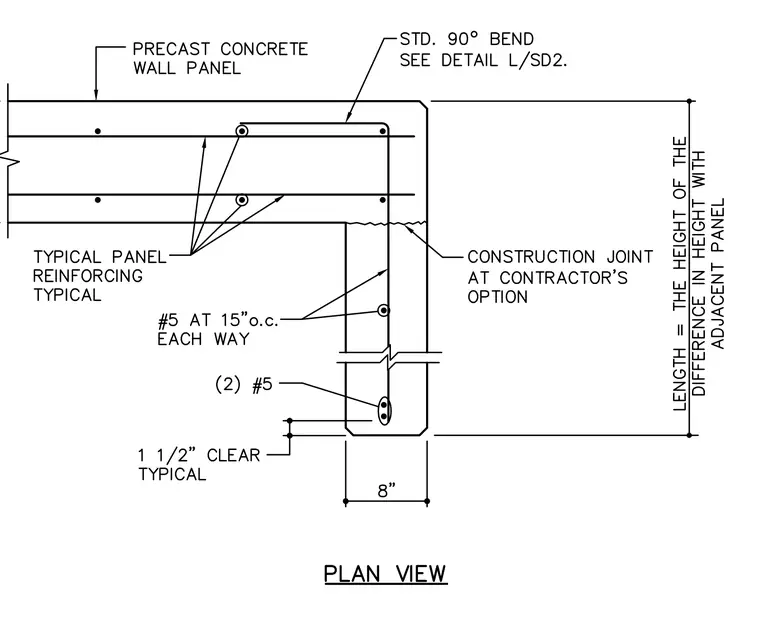

A precast concrete wall panel corner is reinforced with typical panel reinforcing and number five bars spaced at fifteen inches on center each way. The corner features a standard ninety-degree bend detailed elsewhere, alongside two number five bars placed at the termination. A construction joint is provided at the contractor's option. One and one-half inches of clear cover is maintained throughout, with an eight-inch wall thickness.
