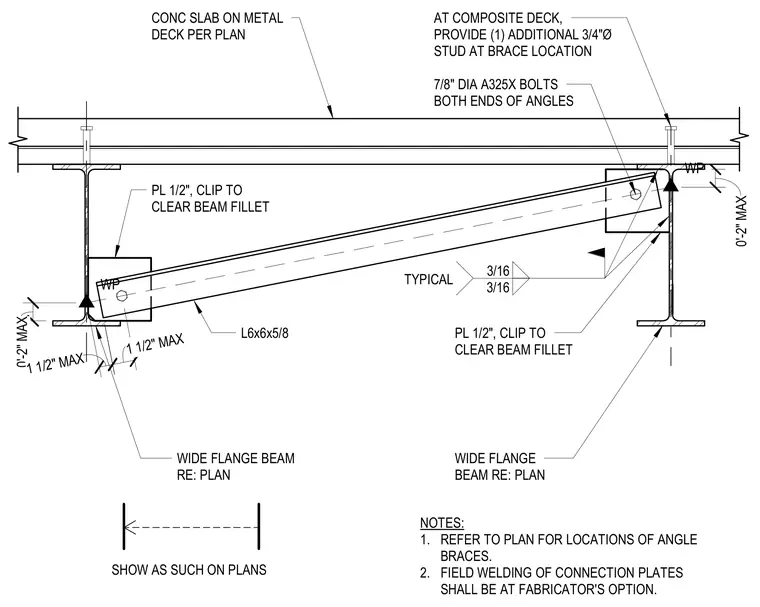

An L6x6x5/8 structural angle kicker brace connects two wide flange support beams carrying a concrete slab on metal deck. Half-inch thick gusset plates, clipped to clear the beam fillets, weld to the beam webs with three-sixteenth-inch fillet welds. Seven-eighths-inch diameter A325X bolts secure each end of the angle brace through the gusset plates. At the composite deck above, one additional three-quarter-inch diameter shear stud is provided at the brace location. Field welding of connection plates remains at the fabricator's option.
0'-2" MAX 0'-2" MAX CONC SLAB ON METAL DECK PER PLAN WIDE FLANGE BEAM RE: PLAN L6x6x5/8 3/16 3/16 TYPICAL WIDE FLANGE BEAM RE: PLAN AT COMPOSITE DECK, PROVIDE (1) ADDITIONAL 3/4"Ø STUD AT BRACE LOCATION WP WP NOTES: 1. REFER TO PLAN FOR LOCATIONS OF ANGLE BRACES. 2. FIELD WELDING OF CONNECTION PLATES SHALL BE AT FABRICATOR'S OPTION. PL 1/2", CLIP TO CLEAR BEAM FILLET PL 1/2", CLIP TO CLEAR BEAM FILLET 1 1/2" MAX 7/8" DIA A325X BOLTS BOTH ENDS OF ANGLES 1 1/2" MAX SHOW AS SUCH ON PLANS
