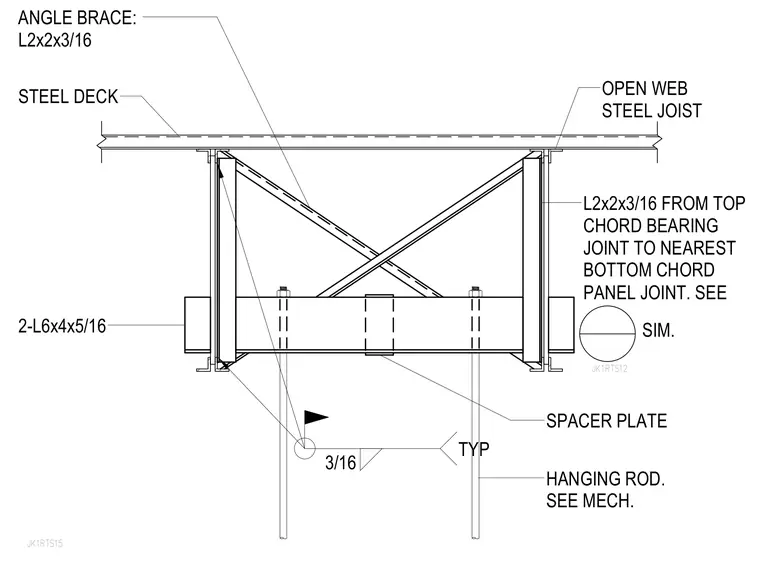

A mechanical unit is suspended below open web steel joists using hanging rods and a pair of supporting structural angles sized 2L6x4x5/16. Cross bracing consisting of L2x2x3/16 angles runs from the top chord bearing joint to the nearest bottom chord panel joint for stability. Spacer plates are installed between members, and connections feature typical 3/16 fillet welds.
JK1RTS15 2-L6x4x5/16 ANGLE BRACE: L2x2x3/16 STEEL DECK L2x2x3/16 FROM TOP CHORD BEARING JOINT TO NEAREST BOTTOM CHORD PANEL JOINT. SEE JK1RTS12 HANGING ROD. SEE MECH. SPACER PLATE SIM. OPEN WEB STEEL JOIST 3/16 TYP
