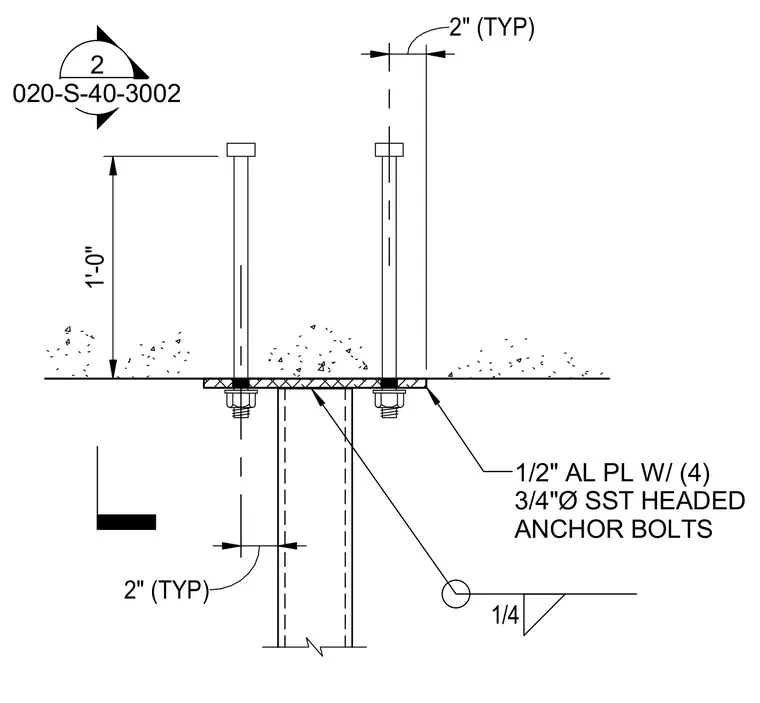

A half-inch aluminum plate is anchored by four three-quarter-inch stainless steel headed anchor bolts embedded one foot into concrete. The plate is welded with a quarter-inch fillet weld to a supporting structural member below. Typical two-inch dimensions set the edge clearances and anchor spacing. Nuts and washers secure the underside of the anchorage assembly.
1/2" AL PL W/ (4) 3/4"Ø SST HEADED ANCHOR BOLTS 1'-0" 2" (TYP) 2 020-S-40-3002 1/4 2" (TYP)
