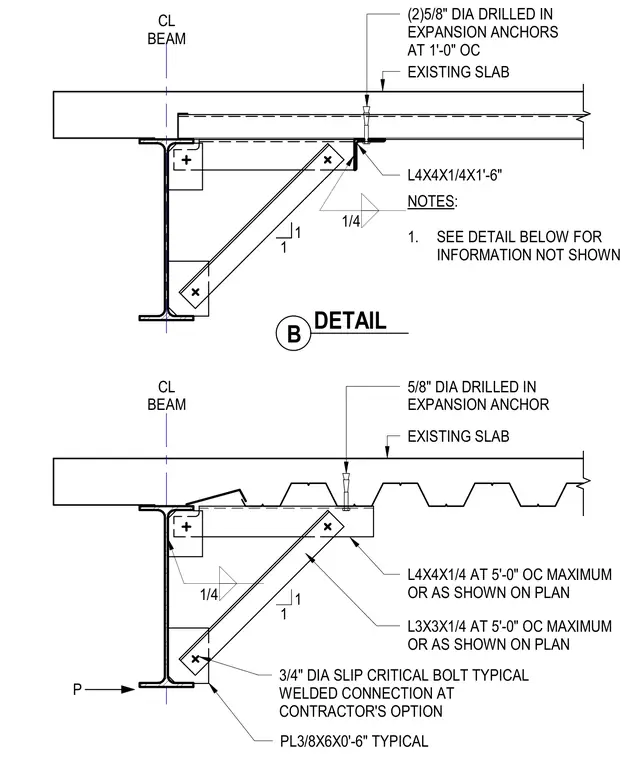

An angle kicker brace formed from an L3x3x1/4 structural angle connects a steel beam to an existing concrete slab or metal deck. The kicker is bolted to a 3/8-inch thick gusset plate welded to the beam web with a quarter-inch fillet weld, using three-quarter-inch diameter slip-critical bolts. At the top, the kicker framing angle fastens to an L4x4x1/4 connection angle anchored into the existing concrete slab using either two five-eighth-inch diameter drilled expansion anchors spaced at one foot on center or a single five-eighth-inch diameter expansion anchor. The connection angle spans 1 foot 6 inches and is spaced at 5 feet on center maximum or as shown on plan. A welded connection is permitted at the contractor's option.
1 L4X4X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN L3X3X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN EXISTING SLAB 1 5/8" DIA DRILLED IN EXPANSION ANCHOR EXISTING SLAB L4X4X1/4X1'-6" CL BEAM 3/4" DIA SLIP CRITICAL BOLT TYPICAL WELDED CONNECTION AT CONTRACTOR'S OPTION (2)5/8" DIA DRILLED IN EXPANSION ANCHORS AT 1'-0" OC CL BEAM NOTES: 1. SEE DETAIL BELOW FOR INFORMATION NOT SHOWN PL3/8X6X0'-6" TYPICAL P 1/4 1/4 1 1 B DETAIL
