Cold-formed metal stud bracing connects to a concrete over metal deck assembly using an L4x4x12-gauge by one-foot six-inch minimum angle clip secured with two three-eighths-inch diameter Hilti KB-TZ2 or Simpson Strong-Bolt 2 expansion anchors with two-inch embedment centered on the low flutes of the metal deck. The metal deck attachment requires four number ten self-tapping metal screws total into two low flutes per connection. A 362S162-43 metal stud brace ties into the assembly, with three number ten self-tapping metal screws at midspan into each stud where the brace length exceeds nine feet.

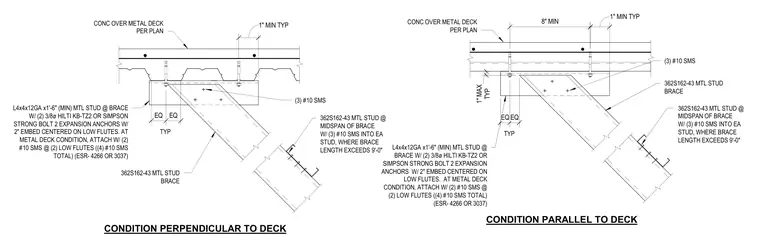

CONDITION PARALLEL TO DECK CONDITION PERPENDICULAR TO DECK L4x4x12GA x1'-6" (MIN) MTL STUD @ BRACE W/ (2) 3/8ø HILTI KB-TZ2 OR SIMPSON STRONG BOLT 2 EXPANSION ANCHORS W/ 2" EMBED CENTERED ON LOW FLUTES. AT METAL DECK CONDITION, ATTACH W/ (2) #10 SMS @ (2) LOW FLUTES ((4) #10 SMS TOTAL) (ESR- 4266 OR 3037) 362S162-43 MTL STUD BRACE (3) #10 SMS CONC OVER METAL DECK PER PLAN 362S162-43 MTL STUD @ MIDSPAN OF BRACE W/ (3) #10 SMS INTO EA STUD, WHERE BRACE LENGTH EXCEEDS 9'-0" L4x4x12GA x1'-6" (MIN) MTL STUD @ BRACE W/ (2) 3/8ø HILTI KB-TZ2 OR SIMPSON STRONG BOLT 2 EXPANSION ANCHORS W/ 2" EMBED CENTERED ON LOW FLUTES. AT METAL DECK CONDITION, ATTACH W/ (2) #10 SMS @ (2) LOW FLUTES ((4) #10 SMS TOTAL) (ESR- 4266 OR 3037) 362S162-43 MTL STUD BRACE CONC OVER METAL DECK PER PLAN 362S162-43 MTL STUD @ MIDSPAN OF BRACE W/ (3) #10 SMS INTO EA STUD, WHERE BRACE LENGTH EXCEEDS 9'-0" TYP 1" MAX EQ EQ TYP TYP EQ EQ 8" MIN (3) #10 SMS 1" MIN TYP 1" MIN TYP
